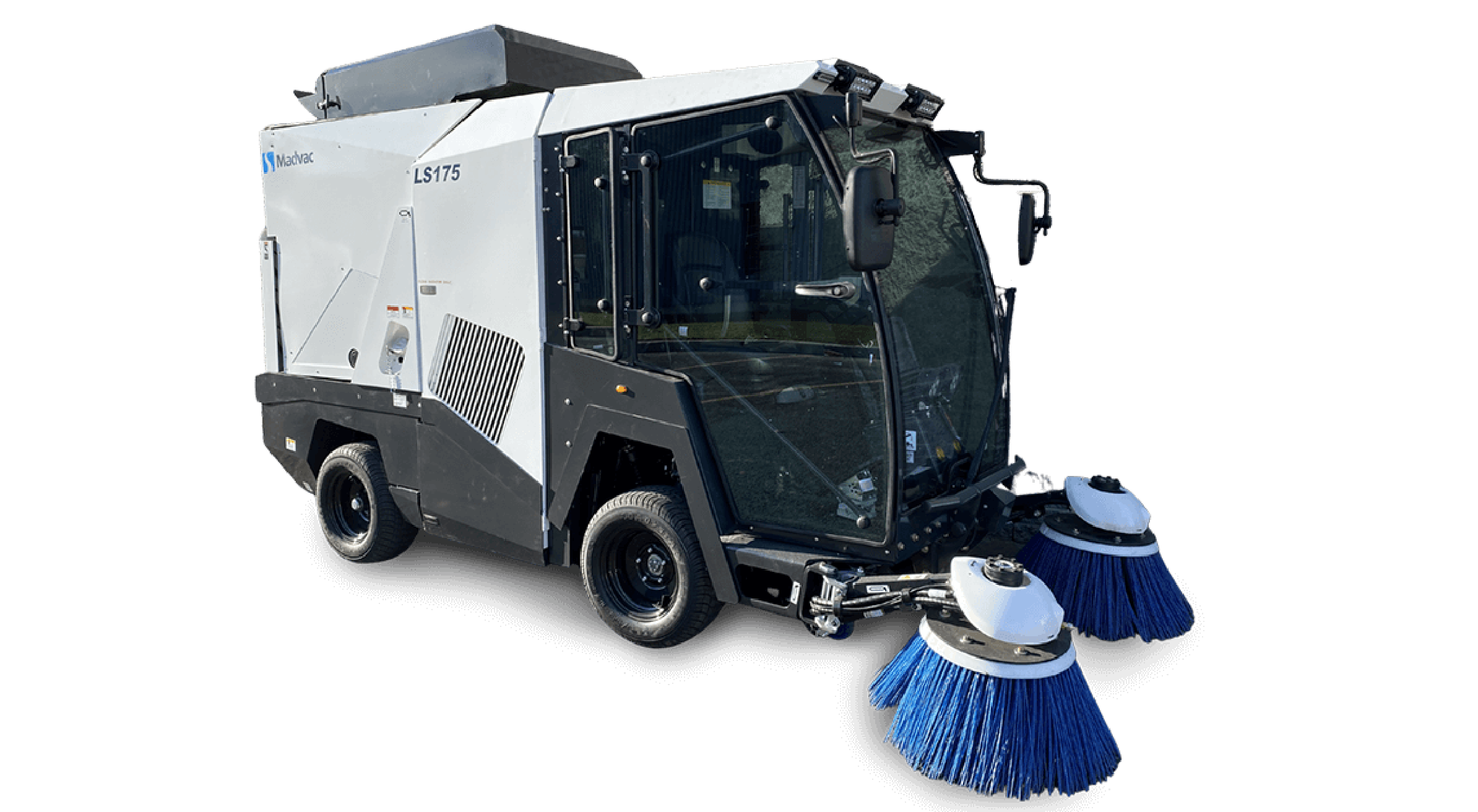

Exprolink LS175 Compact Sweeper

High-Performance Diesel Compact Sweeper for Heavy-Duty Operations

Available through Automation Hub — Authorized Exprolink Distributor

🛠️ Overview

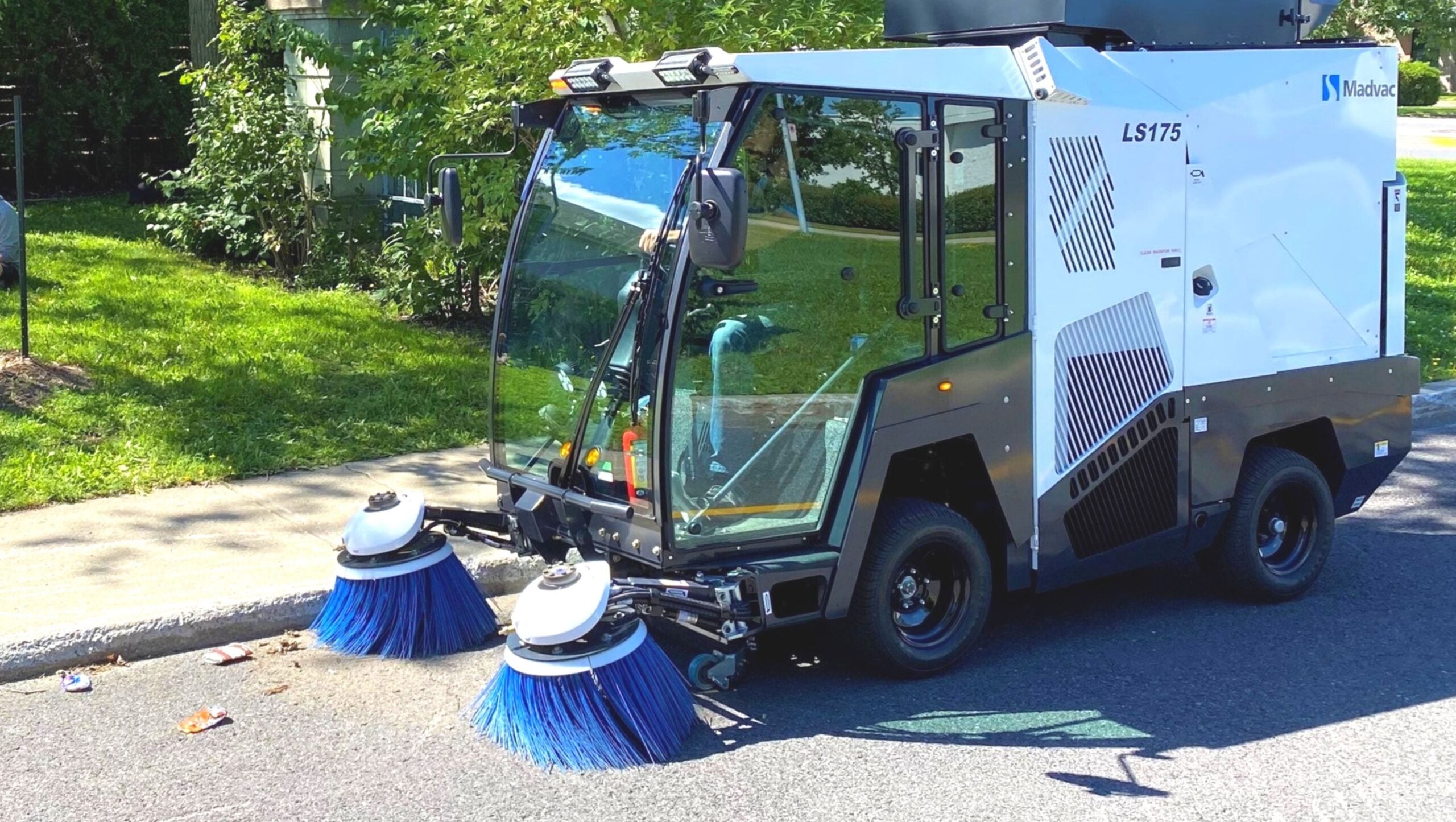

The Exprolink LS175 is a high-capacity, diesel-powered compact sweeper engineered for demanding sweeping applications in city streets, downtown corridors, airports, campuses, and industrial facilities.

Powered by a 58.5 HP Hatz Tier 4 Final diesel engine, the LS175 delivers exceptional sweeping power, high hopper capacity, and reliable all-day operation. With a 1.75 cubic yard stainless steel hopper, advanced 3-stage dust filtration, and a fully enclosed, climate-controlled cab, the LS175 is built for municipalities and operators that require maximum productivity and durability.

🔑 Key Features

• High-Power Diesel Performance
  58.5 HP Tier 4 Final engine designed for continuous-duty sweeping.

• Large-Capacity Hopper
  1.75 cu yd (353 gal) stainless steel hopper reduces dump cycles.

• Wide, Adjustable Sweeping Path
  Sweeping width from 44 to 80 inches with dual joystick-controlled brooms.

• Advanced 3-Stage Dust Control
  Water suppression, rotary filtration, and optional cartridge or bag filtration.

• Fully Enclosed Climate-Controlled Cab
  Heating and A/C, heated windshield, and excellent operator visibility.

• Built for Urban & Industrial Environments
  Robust steel construction, high payload capacity, and excellent gradeability.

📐 Dimensions & Weight

🚀 Performance

• Max Forward Speed: 15 mph

• Max Reverse Speed: 7.5 mph

• Turning Radius: 9 ft

• Gradeability: 20% (11.3°)

• Noise Levels:

  • Cabin: 85 dB

  • Exterior: 85 dB (10 ft)

⚙️ Engine & Powertrain

• Engine: Hatz 3H50TIC

• Type: 3-cylinder turbo diesel with CAC/DOC

• Emissions: EPA Tier 4 Final

• Power: 58.5 HP (44.0 kW) @ 2,800 RPM

• Displacement: 91.54 cu in (1,500 cc)

• Fuel Tank: 21.1 gal (80 L)

• Air Filtration: Donaldson 2-stage system

• Diagnostics: In-cab troubleshooting switch and indicators

🌪️ Vacuum & Sweeping System

• Vacuum Rating: Up to 2,000 CFM

• Vacuum Fan:

  • Side-mounted

  • 16 in welded aluminum fan (ISO 1940 G2.5 balanced)

• Vacuum Nozzle:

  • 30 in wide

  • Self-adjusting for uneven surfaces

  • Electric up/down control from cab

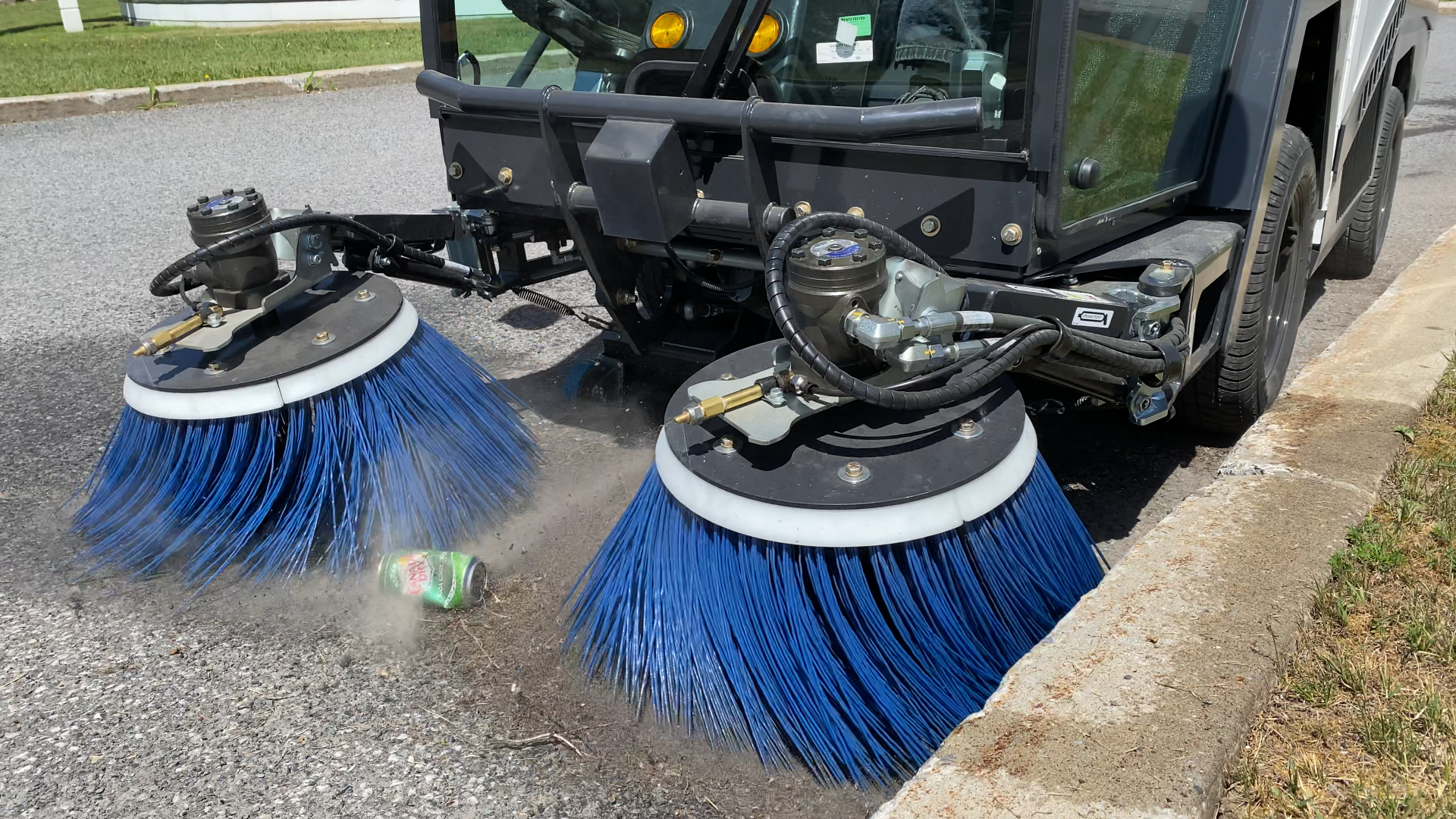

• Brooms:

  • Dual polypropylene brooms

  • 25 in diameter

  • Independent joystick control

  • Variable speed up to 150 RPM

• Sweeping Width:

  • Adjustable 44–80 in

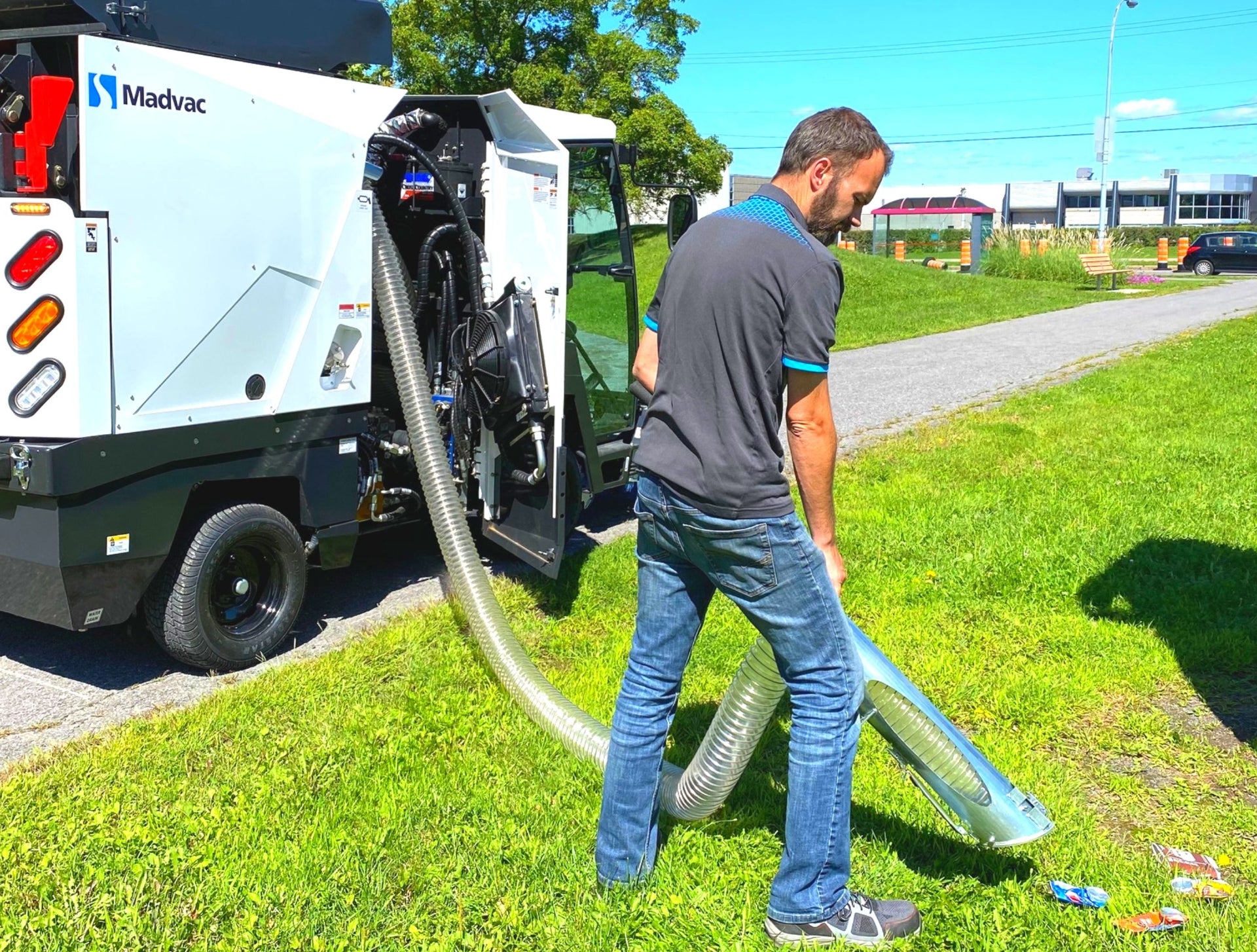

• Optional Wander Hose:

  • 15 ft × 4 in retractable hose

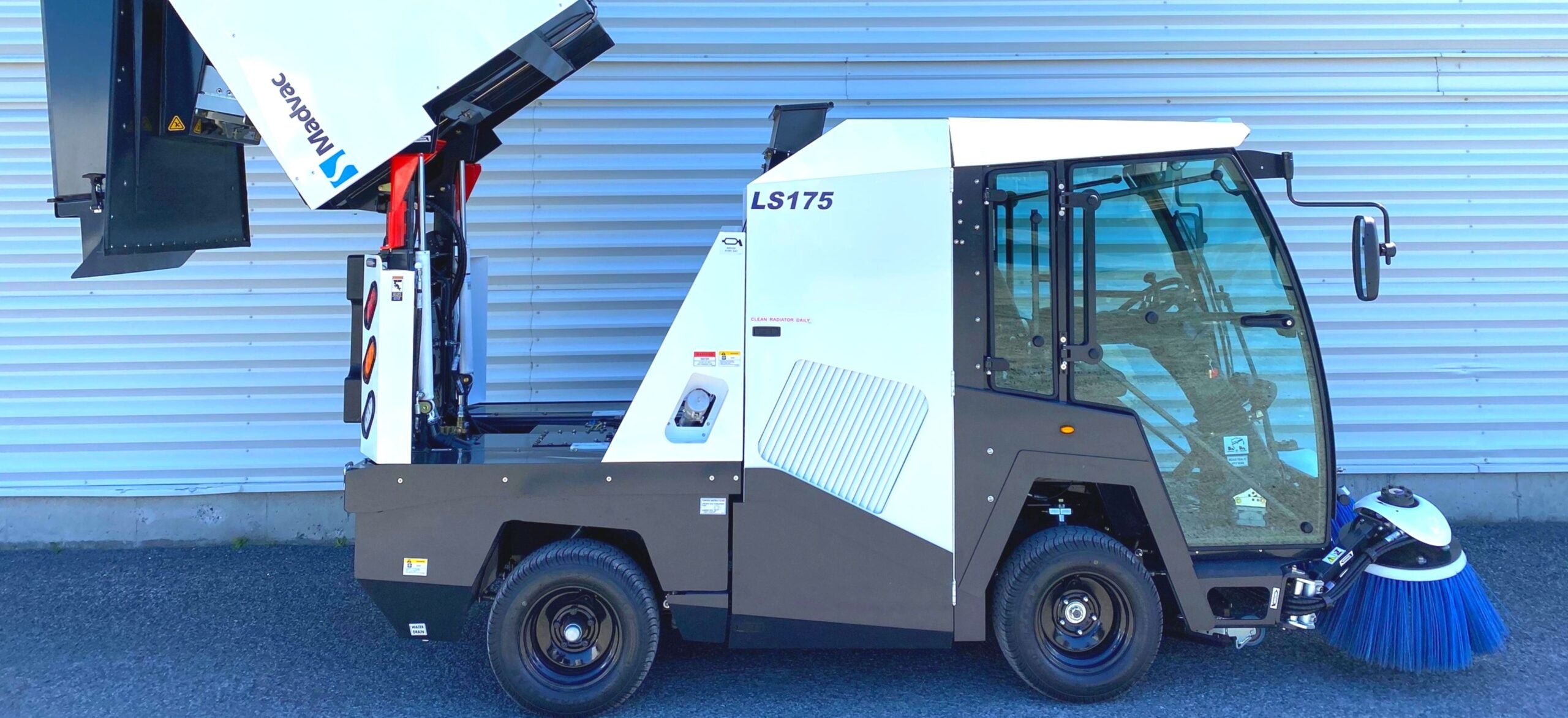

🗑️ Hopper & Filtration

• Hopper Capacity:

  • 1.75 cu yd / 353 gal

• Material: Stainless steel

• Dump Height: 67 in

• Dump Angle: 142°

3-Stage Dust Filtration System

1. Water Suppression

   • Spray nozzles at brooms and container entry

   • 2 in of water in hopper captures fine dust

2. Rotary Filter

   • Self-cleaning steel rotary filter with scraper

3. Final Filtration (Choose One):

   • Option A: Four MERV 15 cartridge filters

   • Option B: Low-profile heavy-duty filtration bag

💧 Water & Washdown

• Water Tanks:

  • 2 × aluminum tanks

  • 58 gal total

• Optional Pressure Washer:

  • 2 GPM @ 1,800 PSI

  • 30 ft hose reel

🛞 Drive, Suspension & Braking

• Drive:

  • Rear-wheel drive

  • Servo-controlled hydrostatic transmission

  • Infinitely variable forward and reverse

• Tires: 225/55-12 radial tires

• Brakes:

  • Rear dynamic hydrostatic braking

  • Rear mechanical disc parking brake

  • Front hydraulic drum brakes

• Suspension:

  • Front & rear coil springs with heavy-duty shocks

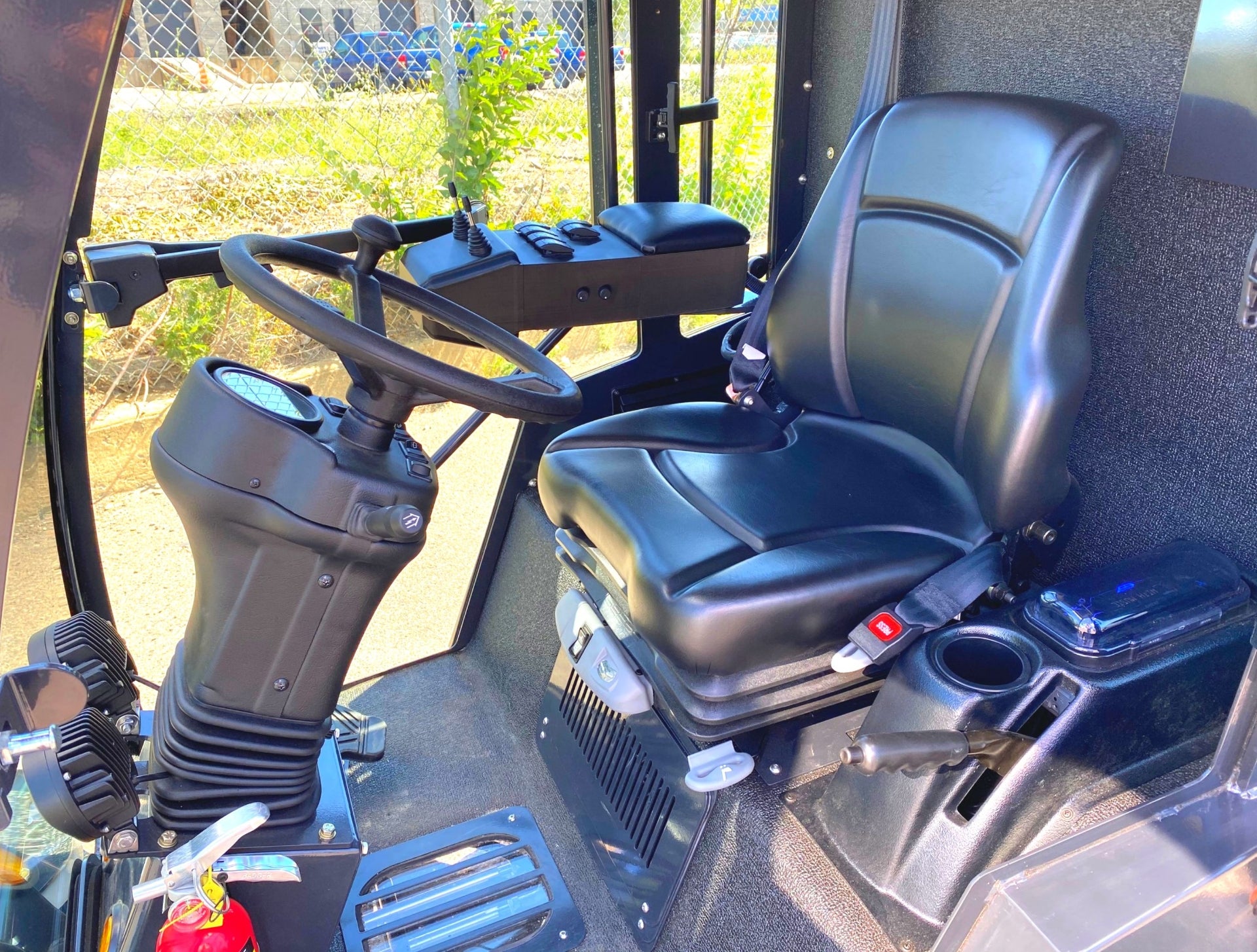

🧍 Cabin, Controls & Operator Comfort

• Panoramic 200° cab visibility

• Heated laminated windshield with washer and 2-speed wiper

• Adjustable air-suspension seat with seat belt

• Heating and air conditioning (HVAC)

• Independent broom joysticks on illuminated armrest

• 7 in rear-view camera with TFT monitor

• Optional multimedia system

• Tiltable power steering column

🛡️ Safety & Lighting

• Emergency stop button

• Audible engine warning system

• Backup alarm

• Full LED lighting package

• Strobe lights and work lights

• SMV sign and license plate light

• Optional fire extinguisher

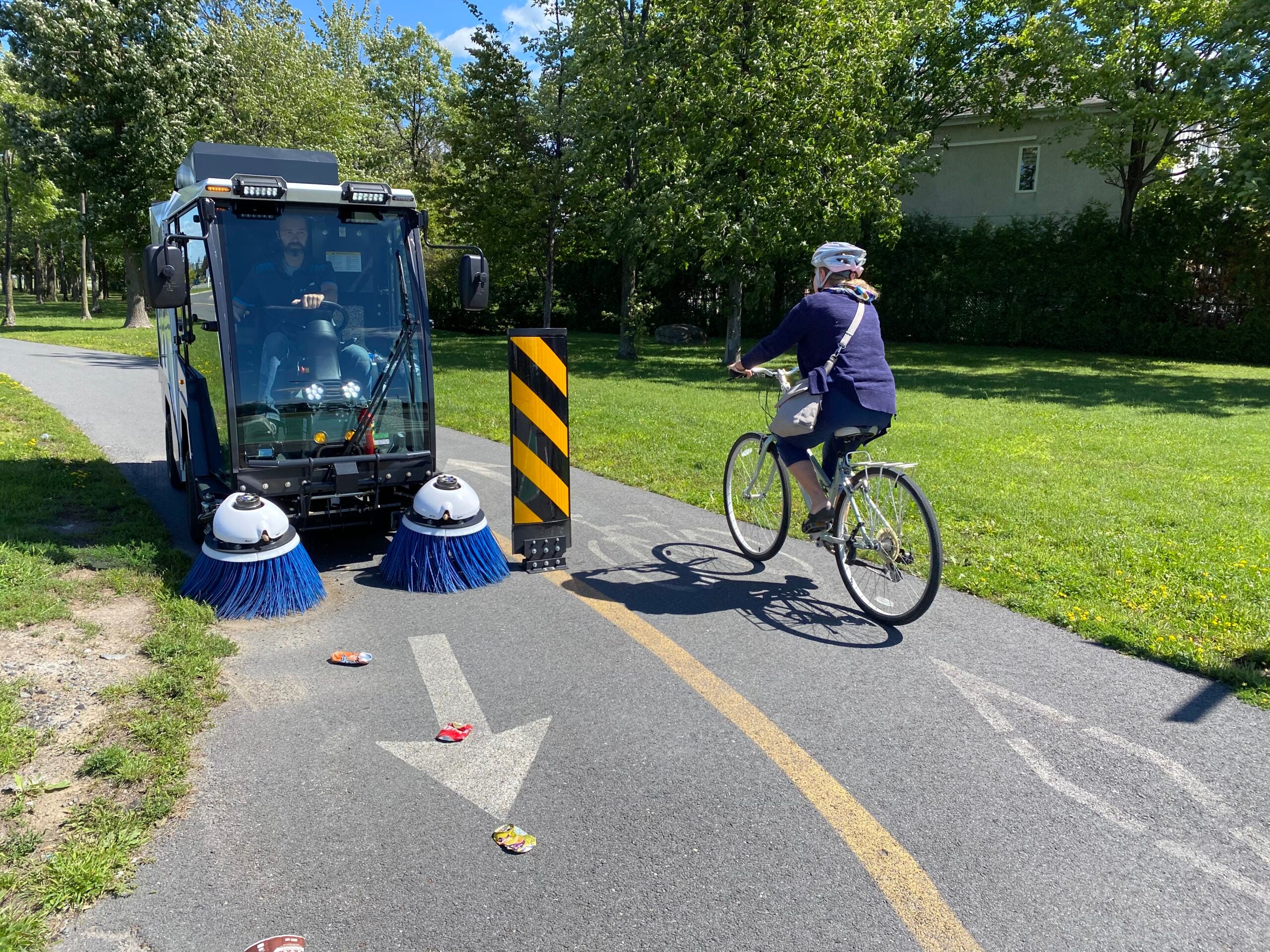

🎯 Ideal Applications

• Municipal street and sidewalk sweeping

• Downtown business districts

• Airports and transit facilities

• Industrial parks

• University and corporate campuses

• Heavy-duty, all-day sweeping operations

🟢 Why Buy Through Automation Hub

As an authorized Exprolink distributor, Automation Hub provides:

• Model selection and fleet sizing guidance

• Electric vs diesel sweeper comparison support

• Procurement and delivery coordination

• Long-term service partnership

Contact Automation Hub for pricing, availability, and deployment planning.
