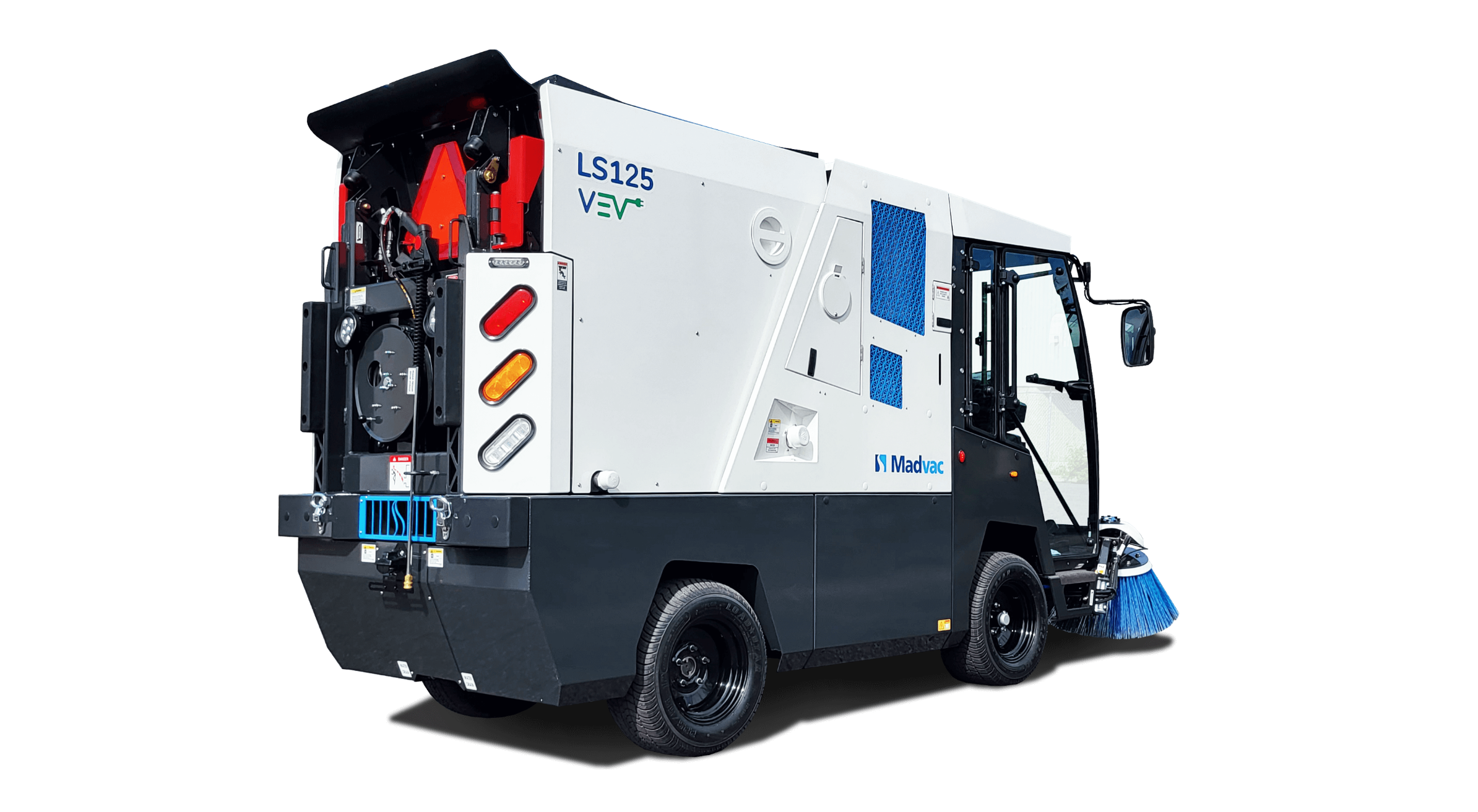

Exprolink LS125 Electric Compact Sweeper

High-Capacity, Zero-Emission Mini Sweeper

Available through Automation Hub — Authorized Exprolink Distributor

🛠️ Overview

The Exprolink LS125 is a fully electric, high-capacity compact sweeper designed for streets, sidewalks, plazas, campuses, parking structures, airports, and urban corridors where performance, cleanliness, and low environmental impact are critical.

Powered by a 69.2 kWh lithium-ion battery system, the LS125 delivers exceptional sweeping and vacuum performance with zero emissions, ultra-low noise levels, and full-shift operating capability. With a 1.25 cubic yard stainless steel hopper, advanced 3-stage dust filtration, and a fully enclosed, climate-controlled cab, the LS125 is built for demanding, professional sweeping operations.

🔑 Key Features

• 100% Electric / Zero Emissions
  Ideal for urban centers, airports, campuses, and sustainability-focused fleets.

• High-Capacity Battery System
  Up to 69.2 kWh lithium-ion power with fast Level-2 charging.

• Ultra-Quiet Operation
  As low as 73 dB exterior, suitable for early-morning or noise-restricted zones.

• Wide, Adjustable Sweeping Path
  Sweeping width from 44 to 80 inches with dual joystick-controlled brooms.

• Advanced 3-Stage Dust Filtration
  Water suppression, rotary filter, and aluminum mesh filtration for superior dust control.

• Fully Enclosed Climate-Controlled Cab
  Electric HVAC, heated windshield, panoramic visibility, and ergonomic controls.

⚡ Electric Power & Charging

• Battery Pack:

  • 4 × lithium-ion high-energy battery packs

  • Total capacity: up to 69.2 kWh

• System Voltage: 102 V

• Charging:

  • 3 × integrated onboard chargers

  • 18 kW total charging capacity

• Charging Interface:

  • J1772 (Type 1)

  • Level 2 (240 V) or Level 1 (120 V)

• Charging Time:

  • ~4 hours on 240 V with full 18 kW available

📐 Dimensions & Weight

🚀 Performance

• Max Forward Speed: 15 mph

• Max Reverse Speed: 5 mph

• Turning Radius: 108 in

• Gradeability: 20% (11.3°)

• Noise Levels:

  • Cabin: 75 dB

  • Exterior: 73 dB (10 ft, vacuum fan LO)

🌪️ Vacuum & Sweeping System

• Vacuum Rating: Up to 2,500 CFM

• Vacuum Fan:

  • 19.4 in diameter

  • IPM synchronous motor

• Vacuum Nozzle:

  • 30 in wide

  • Self-adjusting for uneven surfaces

  • Electrically actuated from cabin

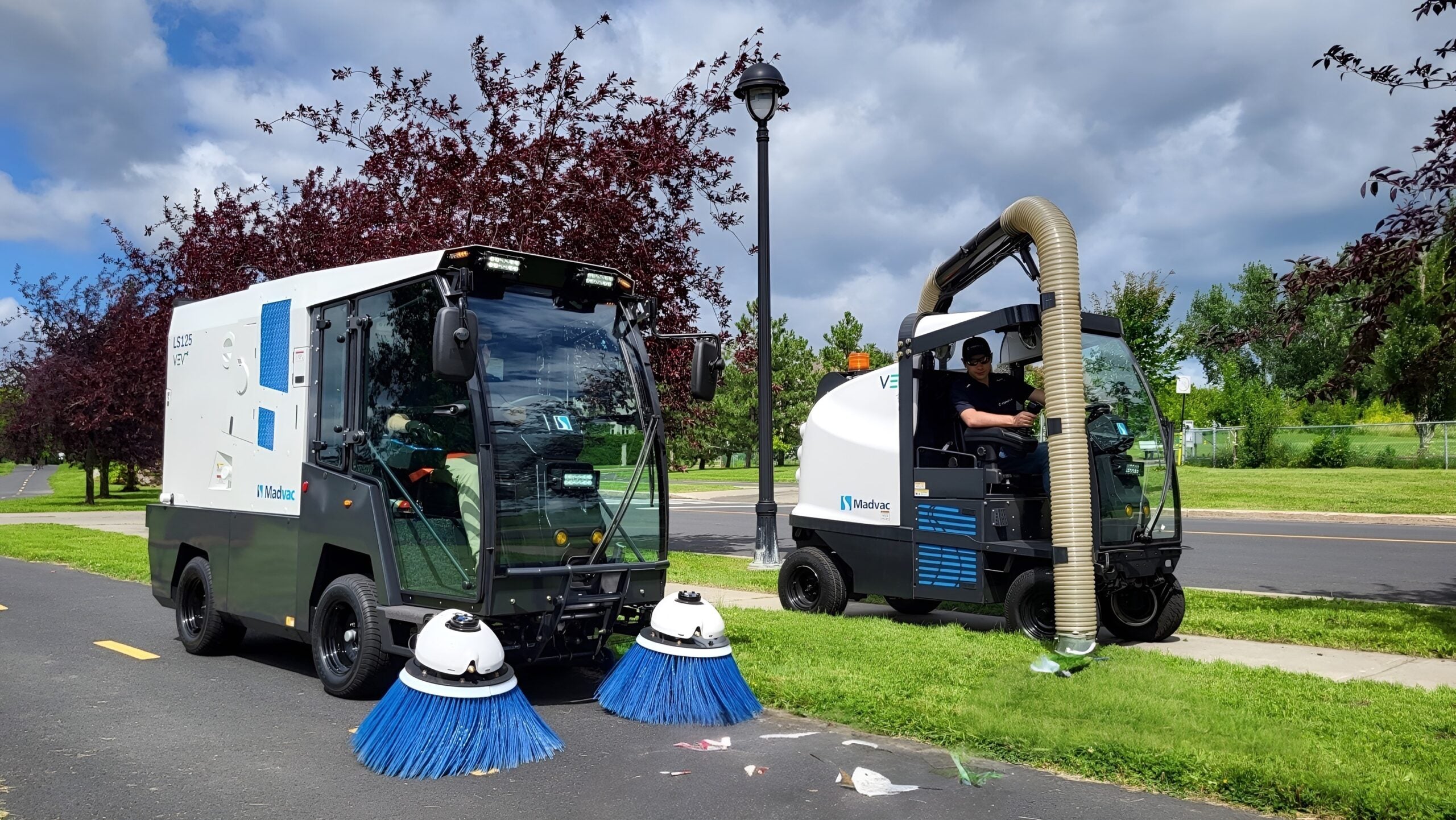

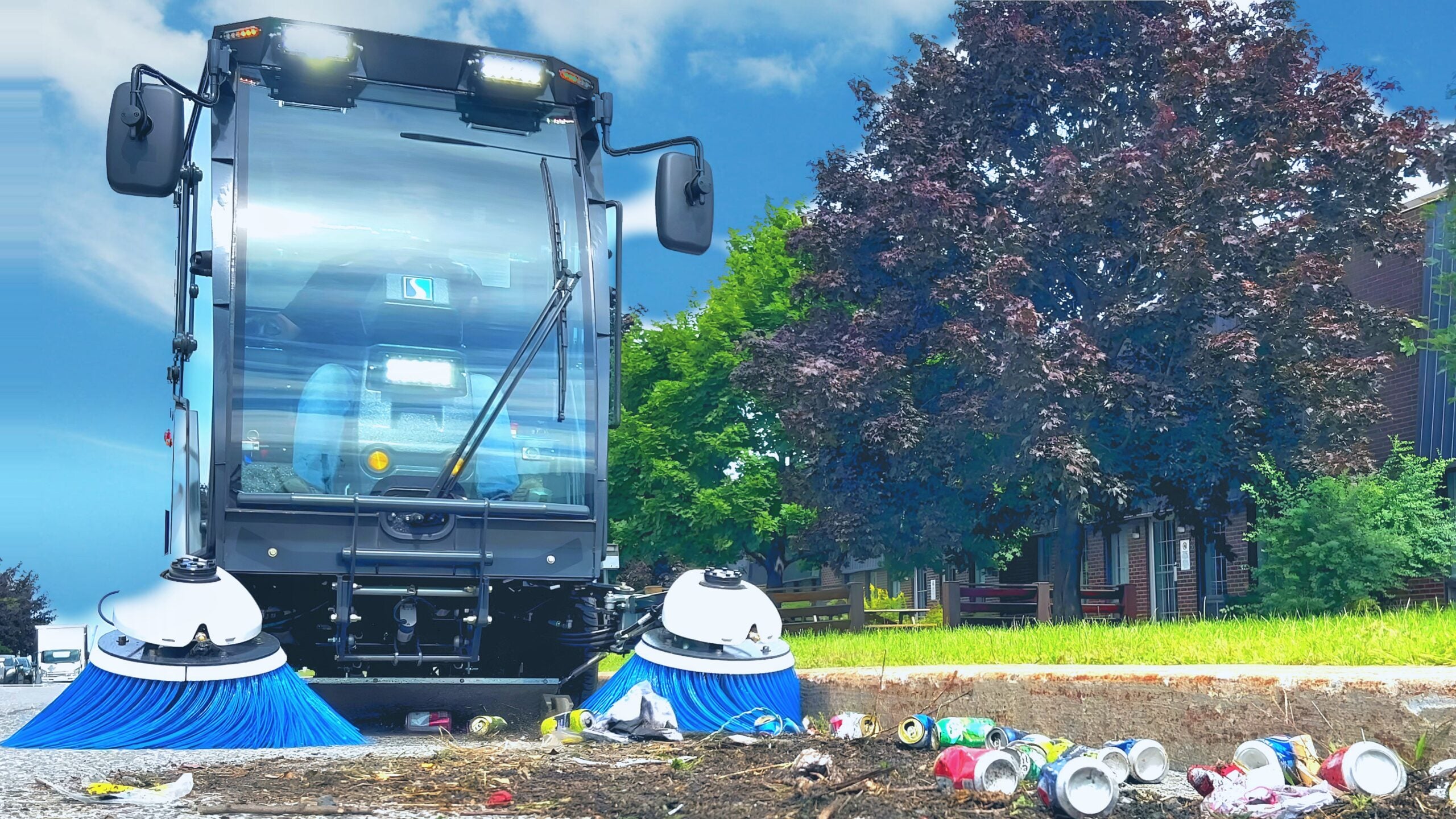

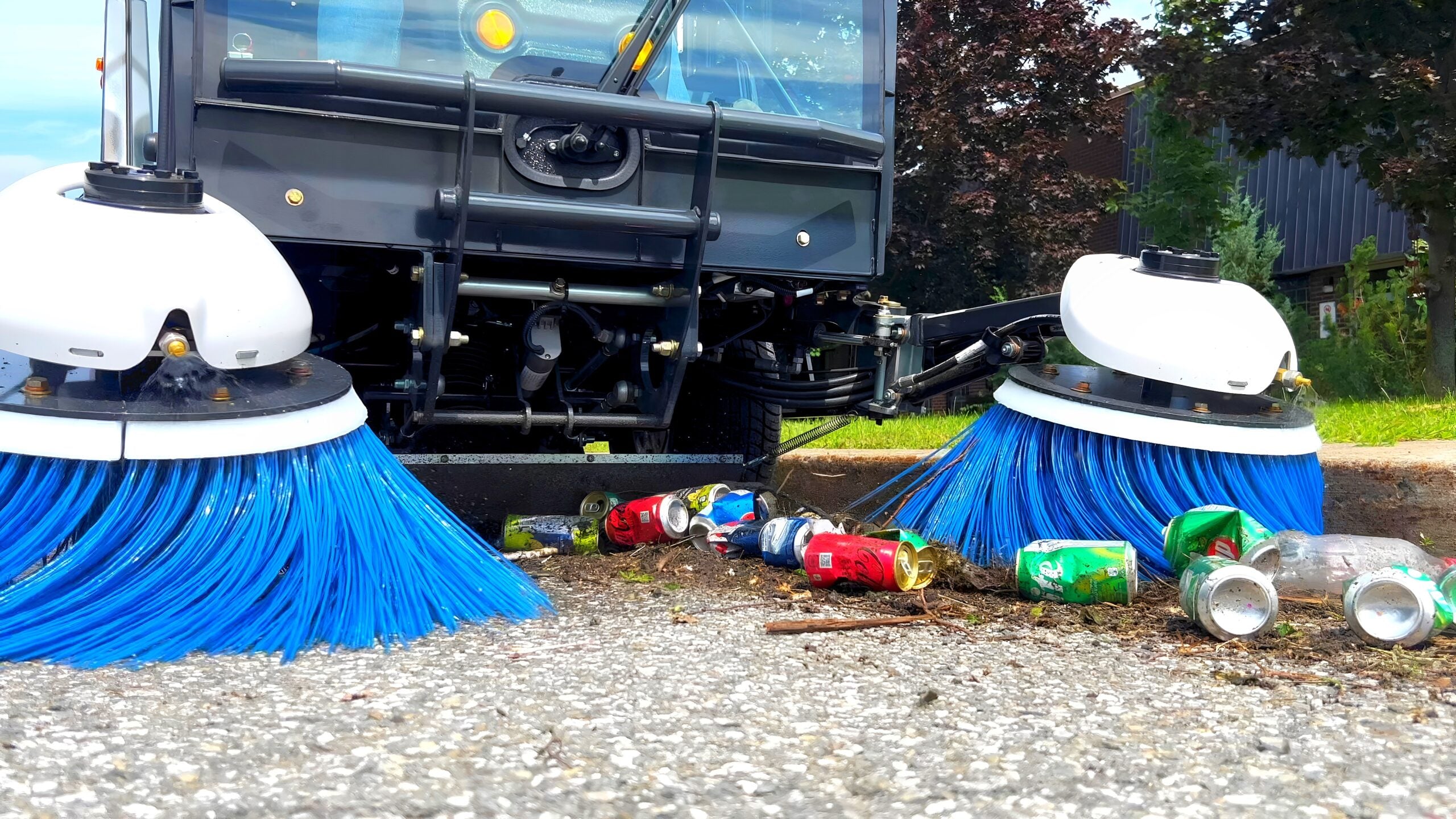

• Brooms:

  • Dual polypropylene brooms

  • 25 in diameter

  • Independent joystick control

  • Variable speed up to 150 RPM

• Sweeping Width:

  • Adjustable from 44 to 80 in

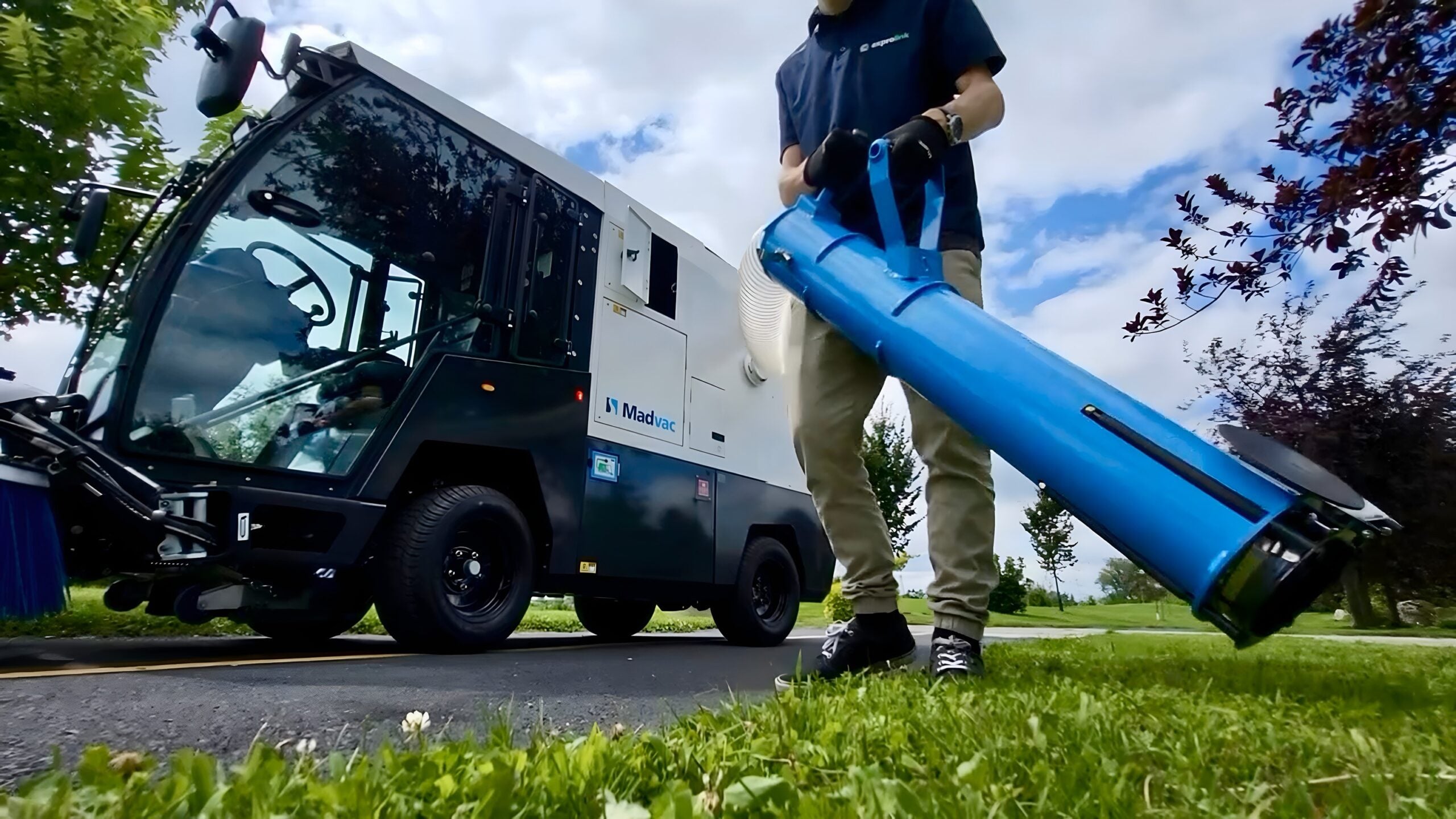

• Wander Hose:

  • 12 ft × 5 in (optional)

🗑️ Hopper & Filtration

• Hopper Capacity:

  • 1.25 cu yd (252 US gal)

• Material: Stainless steel

• Dump Height: 67 in

• Dump Angle: 142°

3-Stage Dust Control System

1. Water Suppression

   • Spray nozzles at brooms, container entry, and filtration door

   • 2 in of water in hopper captures fine dust

2. Rotary Filter

   • Self-cleaning steel rotary filter with scraper

3. Mesh Filtration

   • 5 in aluminum mesh filter (MERV 4 equivalent)

💧 Water & Washdown

• Water Tanks:

  • 2 × aluminum tanks

  • 72 US gal total

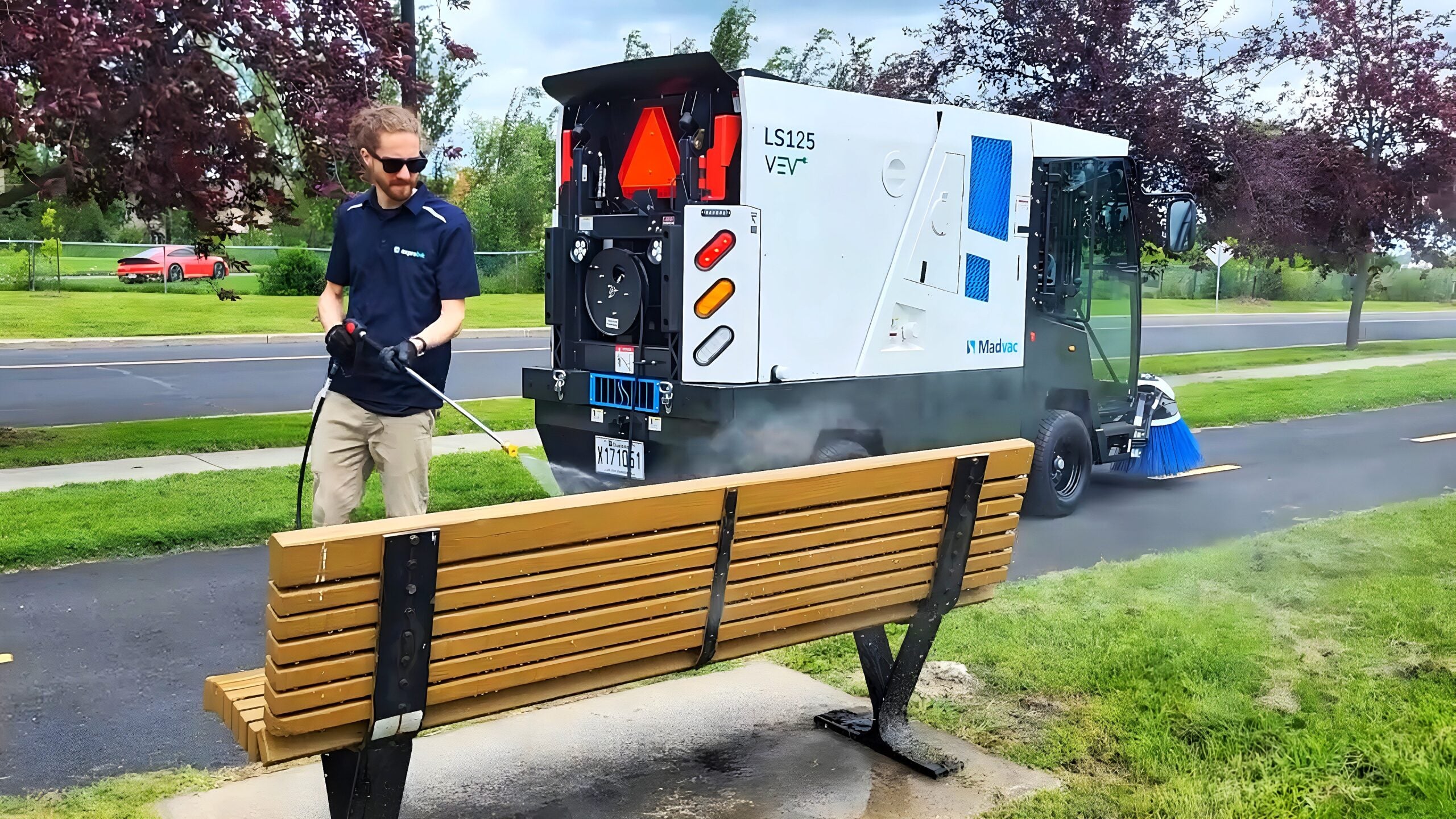

• Optional Pressure Washer:

  • 2,100 PSI @ 2 GPM

  • 30 ft hose reel

🛞 Drive, Suspension & Braking

• Drive: Rear-wheel drive, IPM synchronous motor

• Tires: 225/55-12 radial tires

• Brakes:

  • Front hydraulic drum brakes

  • Rear electromagnetic parking brake

• Suspension:

  • Front: Coil springs with heavy-duty shocks (center pivot)

  • Rear: Coil springs with heavy-duty shocks

🧍 Cabin, Controls & Operator Comfort

• Panoramic 200° visibility

• Heated laminated windshield with 2-speed wiper

• Adjustable air-suspension seat with seatbelt

• Electric HVAC (heat & A/C)

• Independent broom control joysticks

• 7 in rear-view camera with TFT monitor

• USB ports, 12V outlet, cup holder

• Optional multimedia system with Bluetooth

🛡️ Safety & Lighting

• Emergency stop button

• White-noise backup alarm

• Forward alarm and horn

• LED lighting package (front, side, rear)

• Strobe lights and work lights

• SMV reflective signage

• Optional fire extinguisher

🎯 Ideal Applications

• Municipal street and sidewalk sweeping

• Downtown business districts

• Airports and transit facilities

• University and corporate campuses

• Parking garages and plazas

• Noise- and emissions-restricted environments

🟢 Why Buy Through Automation Hub

As an authorized Exprolink distributor, Automation Hub provides:

• Fleet electrification planning

• Model comparison and sizing

• Procurement and delivery coordination

• Grant and sustainability alignment support

• Long-term service partnership

Contact Automation Hub for pricing, availability, and deployment planning.
