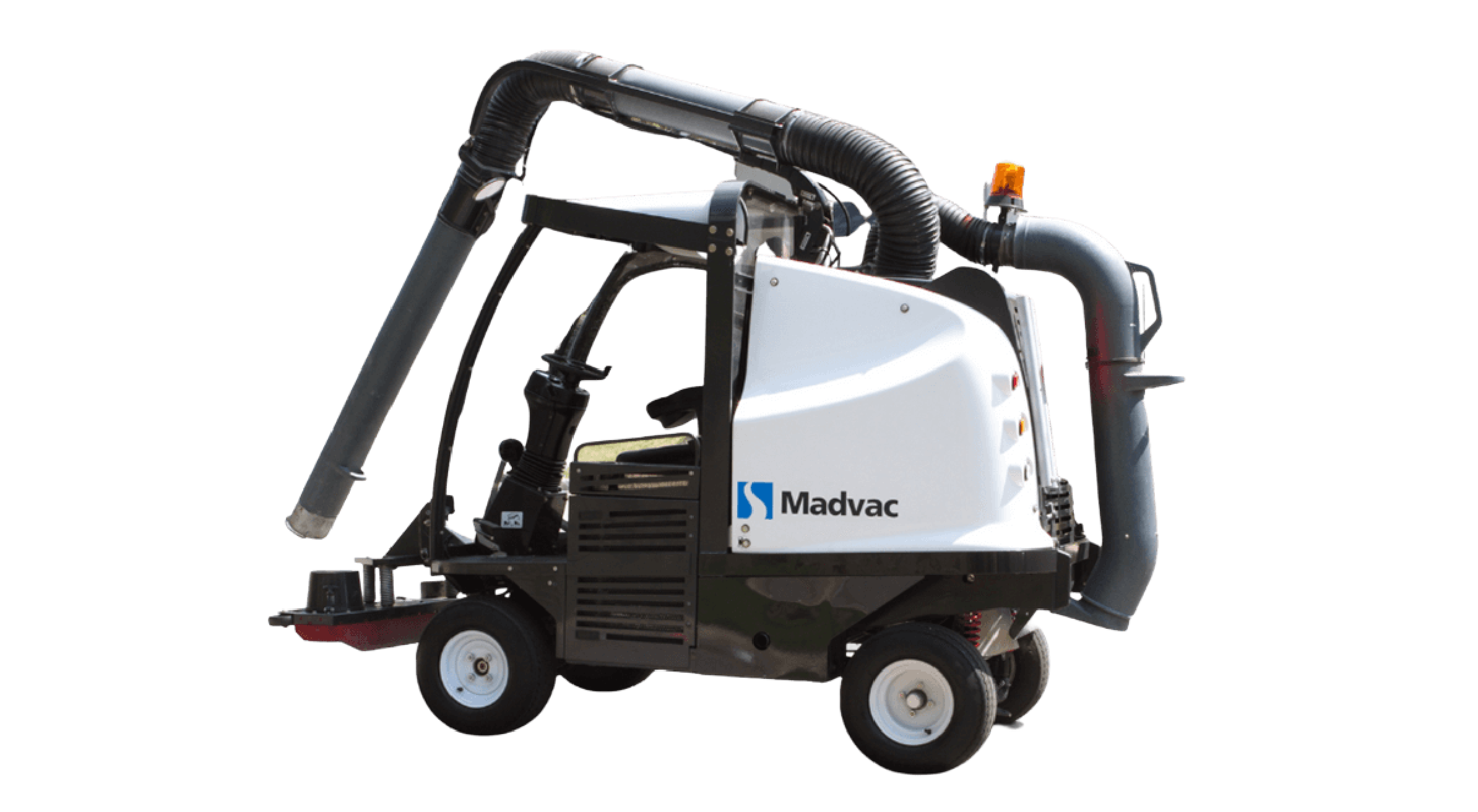

Exprolink LR50 All-Terrain Litter Vacuum (Diesel)

Madvac LR50

Available through Automation Hub — Authorized Exprolink Distributor

🛠️ Overview

The Exprolink LR50 is a rugged, all-terrain litter vacuum designed for the removal of debris from sidewalks, parks, alleys, downtown districts, and other public spaces. With a compact footprint, front-wheel hydrostatic drive, and a hydraulically controlled vacuum arm, it provides operators with excellent maneuverability and strong suction performance in tight, high-traffic areas.

This unit is powered by a Kubota EPA Tier 4 Final diesel engine and is built for daily municipal and commercial cleaning operations — no CDL required.

🔑 Key Features

• No CDL Required
  Simple operation for municipal crews, contractors, and facilities teams.

• All-Terrain Performance
  Handles sidewalks, parks, alleys, curb lines, and uneven surfaces.

• Hydraulic Vacuum Arm
  160° arm movement with 4 ft reach, hydraulic raise/lower.

• 48” Vacuum Head
  Wide cleaning path for higher productivity per pass.

• Compact + Maneuverable
  Narrow 48” wheel width and tight turning radius for confined spaces.

• Heavy-Duty Steel Frame
  Heavy gauge steel body on welded ¼” structural steel frame.

⚙️ Engine & Power

• Engine: Kubota Diesel D1105-E4B (EPA Tier 4 Final)

• Power: 24.8 hp (18.5 kW) @ 3200 rpm

• Displacement: 68.53 cu in (1123 cc)

• Fuel Capacity: 10.2 US gal (39 L)

• Air Cleaner: 2-stage Donaldson with restriction indicator

• Protection: High temp / low oil pressure engine shutoff

• Fuel Compatibility: B5 biodiesel blend accepted

📐 Dimensions & Weight

🚀 Performance

• Max Forward Speed: 11 mph

• Max Reverse Speed: 5 mph

• Cleaning Speed: Up to 84,480 sq ft/hour (48” head at 4 mph)

• Gradeability: 20% (11.3°)

• Horizontal Slope: 36% (20°)

• Curb Climb: 7 in

• Turning Radius:

  • Internal: 60 in

  • External: 90 in (curb-to-curb)

🌪️ Vacuum & Suction System

• Vacuum Rating: Up to 1,800 CFM

• Vacuum Fan: Bottom mounted, 14 in diameter

• Air Speed: Up to 5,900 ft/min

• Vacuum Hose: 7 in diameter

• Vacuum Arm: 160° movement, 4 ft reach

• Vacuum Head: 48 in (1.2 m)

• Wander Hose: 15 ft long, 6 in diameter

🗑️ Litter Container

• Capacity:

  • 66 gal (250 L)

  • Up to 150 lbs

• Construction: 16-gauge powder-coated steel container

• Dumping: Simple hydraulic tilt action

• Filtration: Polypropylene fiber filter litter bag

• Bag Options: Optional bag sizing; optional bagless Kevlar bin

🔩 Hydraulic System

• Hydraulic Capacity: 12.5 US gal (47 L)

• Drive: Front-wheel hydrostatic with pump + two wheel motors

• Filtration: 10-micron intake strainer + return filtration

• Tow Bypass: Tool-free bypass valve for low-speed towing

• Hydraulic Fluid: HVI 46

🛞 Traction, Suspension & Braking

• Drive: Front-wheel drive

• Tires: 20.5×8×10 bias ply (optional turf tires available)

• Brakes: Hydrostatic braking + mechanical disc parking brake

• Suspension: Front & rear leaf springs (1,980 lb capacity each)

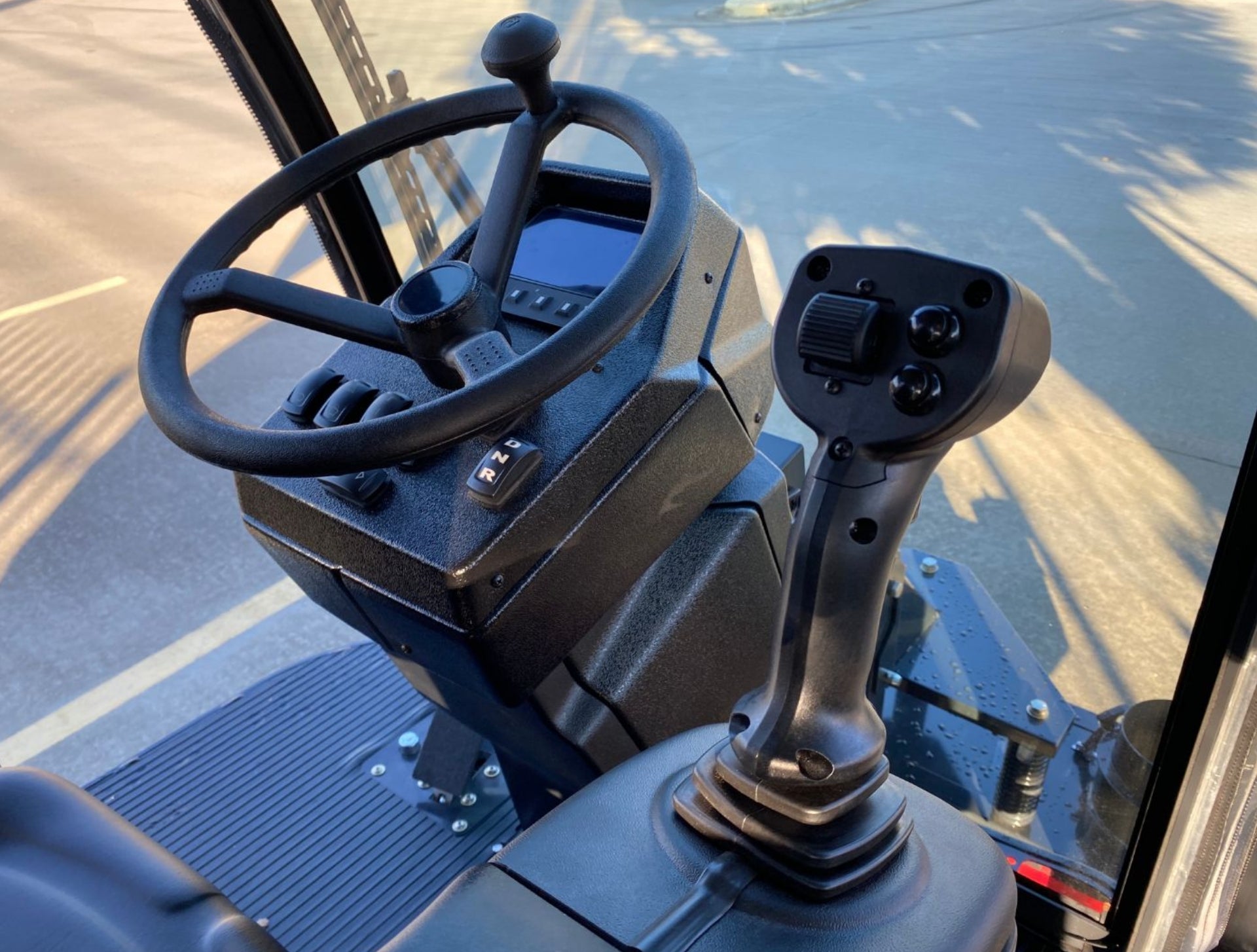

🧍 Operator Station & Safety

• Adjustable seat with armrests and lap belt

• Automotive steering wheel with steering ball

• Power assisted steering

• Instrumentation: fuel gauge, hour meter, indicators, hazard switch

• Safety: ROPS, emergency stop, backup alarm, lighting package

🎯 Ideal Applications

• Municipal sidewalk and street cleaning

• Parks & recreation

• Downtown business districts

• Campuses and facilities

• Transit areas and public corridors

• Contractors providing litter abatement services

🟢 Why Buy Through Automation Hub

As an authorized Exprolink distributor, Automation Hub provides:

• Model selection and configuration guidance

• Procurement and delivery coordination

• Fleet planning support

• Long-term service partnership

Contact Automation Hub for pricing and availability.
