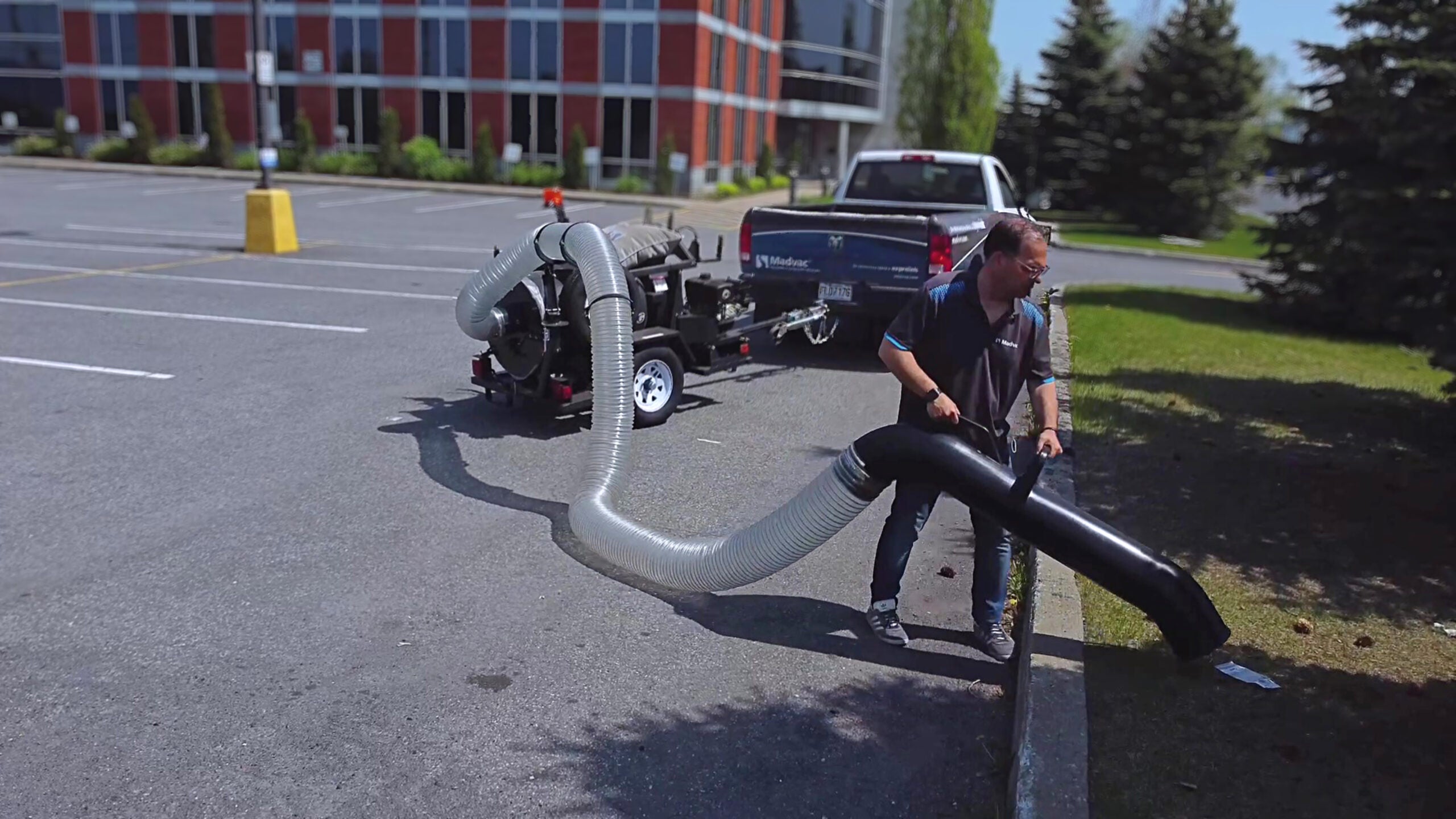

Exprolink LP61-G Portable Litter Vacuum

(Skid-Mount or Trailer-Mount Configuration)

Available through Automation Hub — Authorized Exprolink Distributor

🛠️ Overview

The Exprolink LP61-G is a portable, high-powered litter vacuum designed for fast, flexible cleanup in parks, festivals, construction sites, campuses, parking lots, and public spaces. Available in both skid-mount and trailer-mount configurations, the LP61-G delivers powerful suction without the need for a dedicated vacuum vehicle.

Powered by a Vanguard 14 HP gasoline engine and capable of producing up to 2,200 CFM, this unit is ideal for crews that need maximum vacuum performance with minimal footprint and setup time.

🔑 Key Features

  • Portable & Versatile Design
    Available as a skid-mount unit or fully road-ready trailer.

  • High Vacuum Performance
    Up to 2,200 CFM airflow with strong debris pickup.

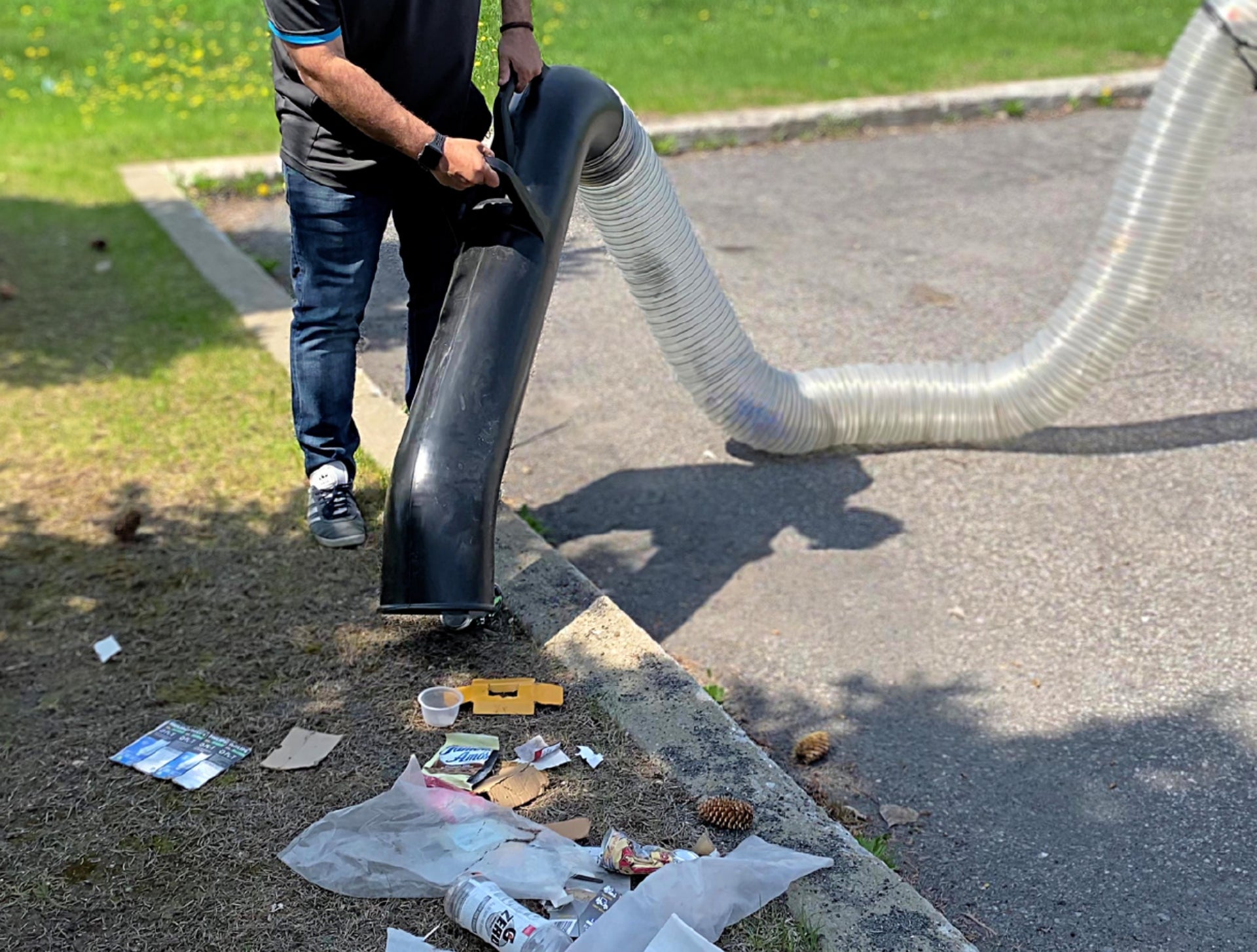

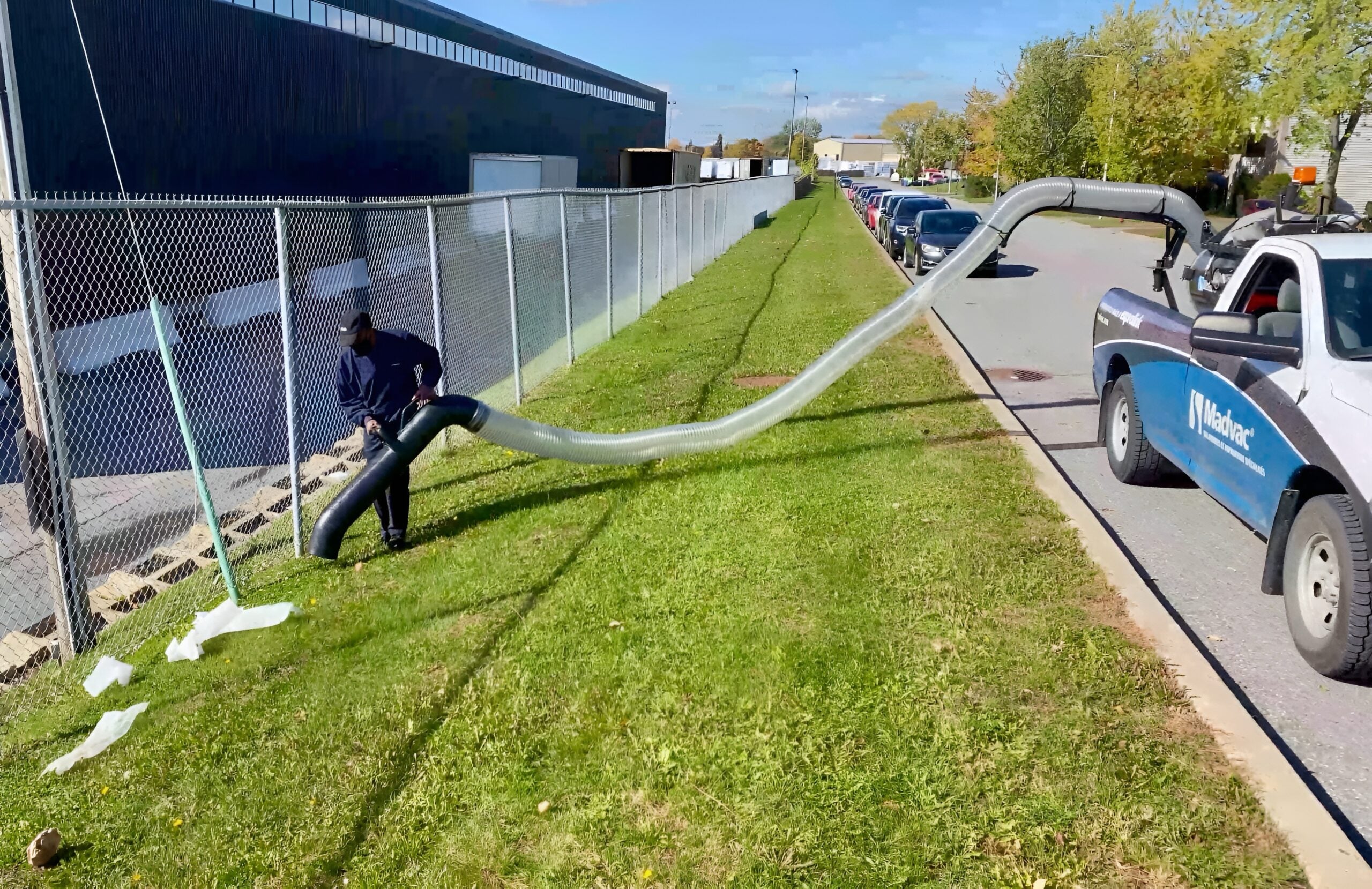

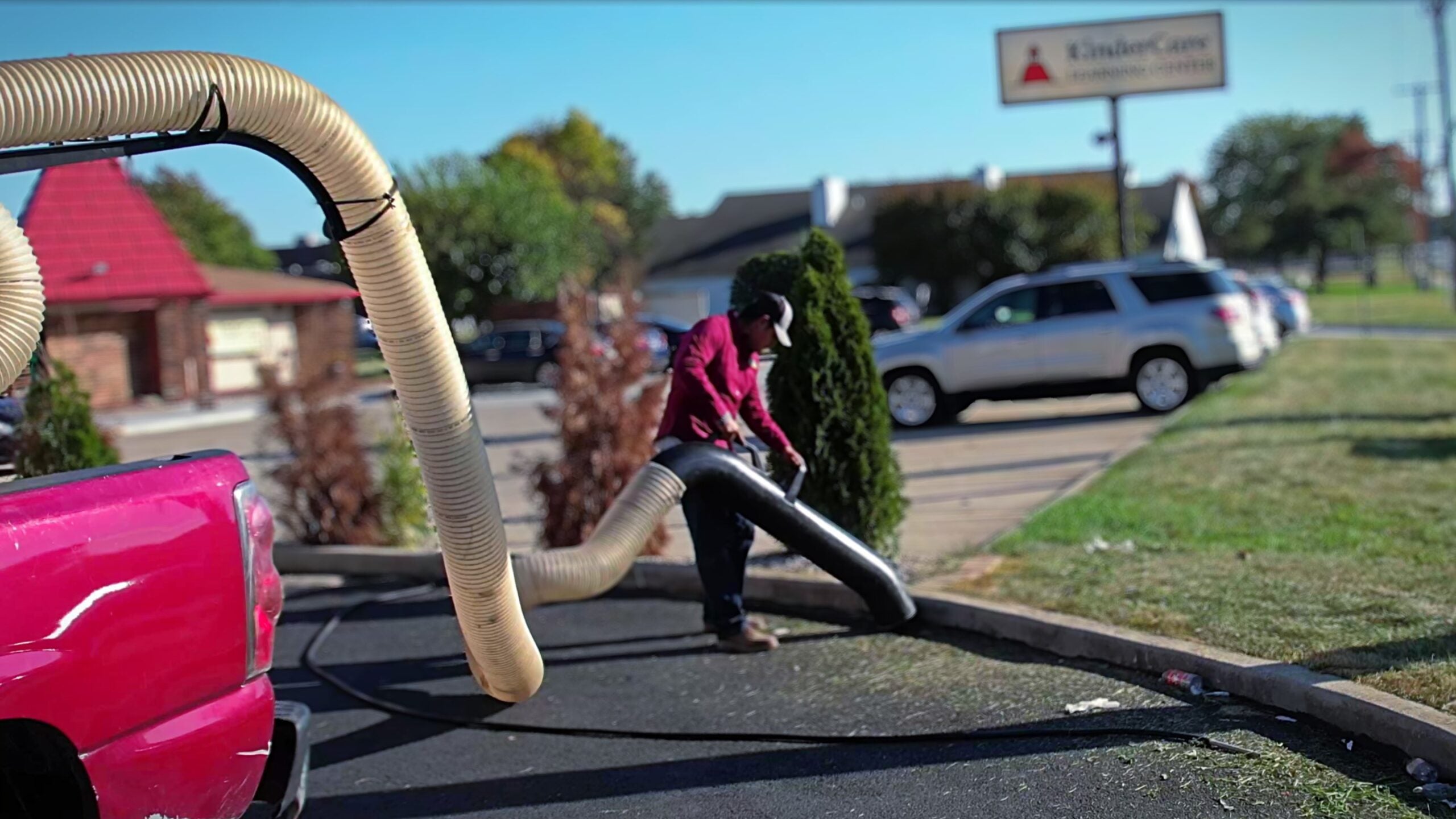

  • Long-Reach Vacuum Hose
    Standard 25 ft, 8-inch diameter hose with optional extensions.

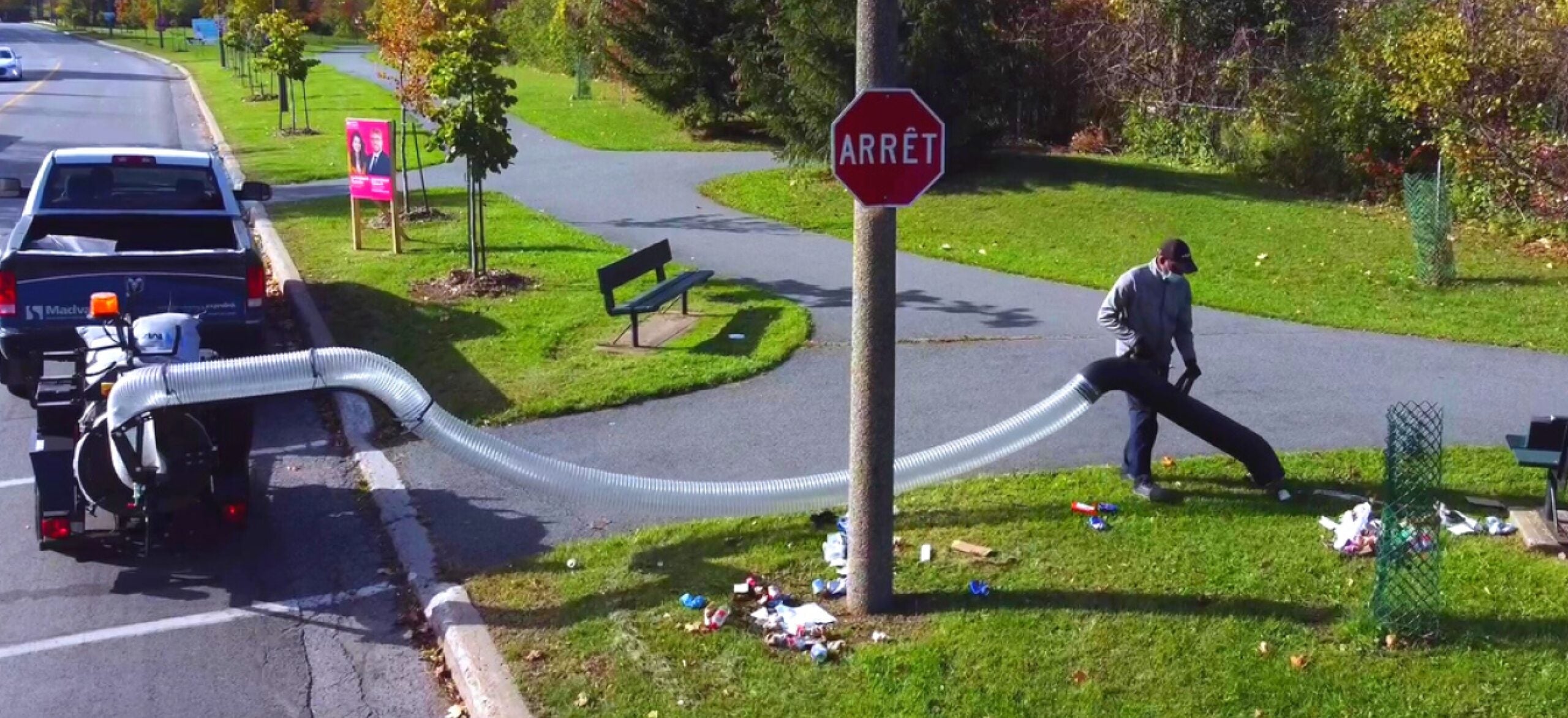

  • 360° Hose Support Arm
    Reduces operator fatigue and improves maneuverability.

  • Heavy-Duty Construction
    Steel body mounted on a welded ¼-inch structural steel frame.

  • Simple, Reliable Gas Power
    Easy-to-maintain Vanguard engine with large fuel capacity.

📐 Dimensions & Weight

Skid-Mount Configuration

Specification Measurement
Length 72 in
Width 47.2 in
Height 49.5 in
Weight 750 lbs

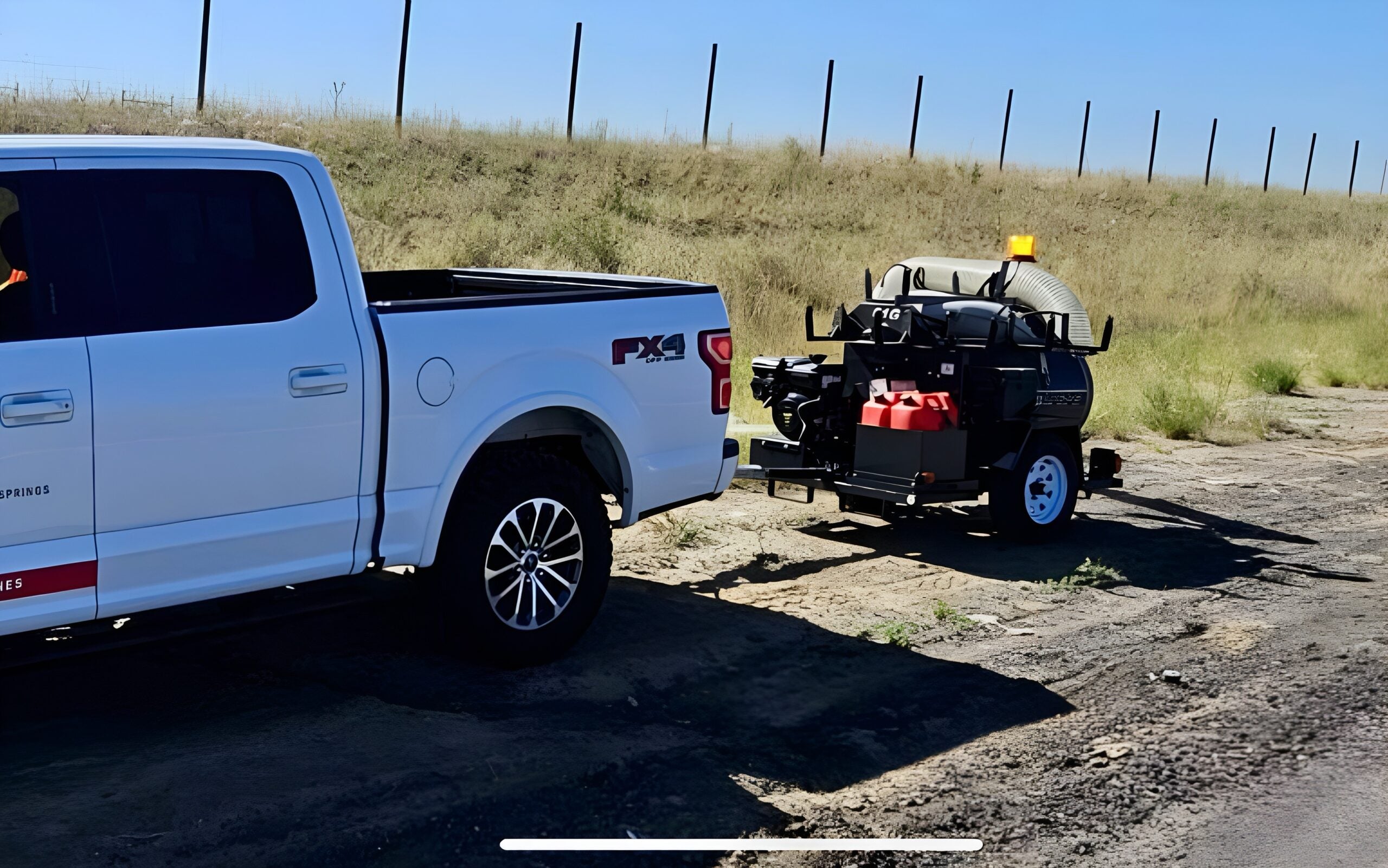

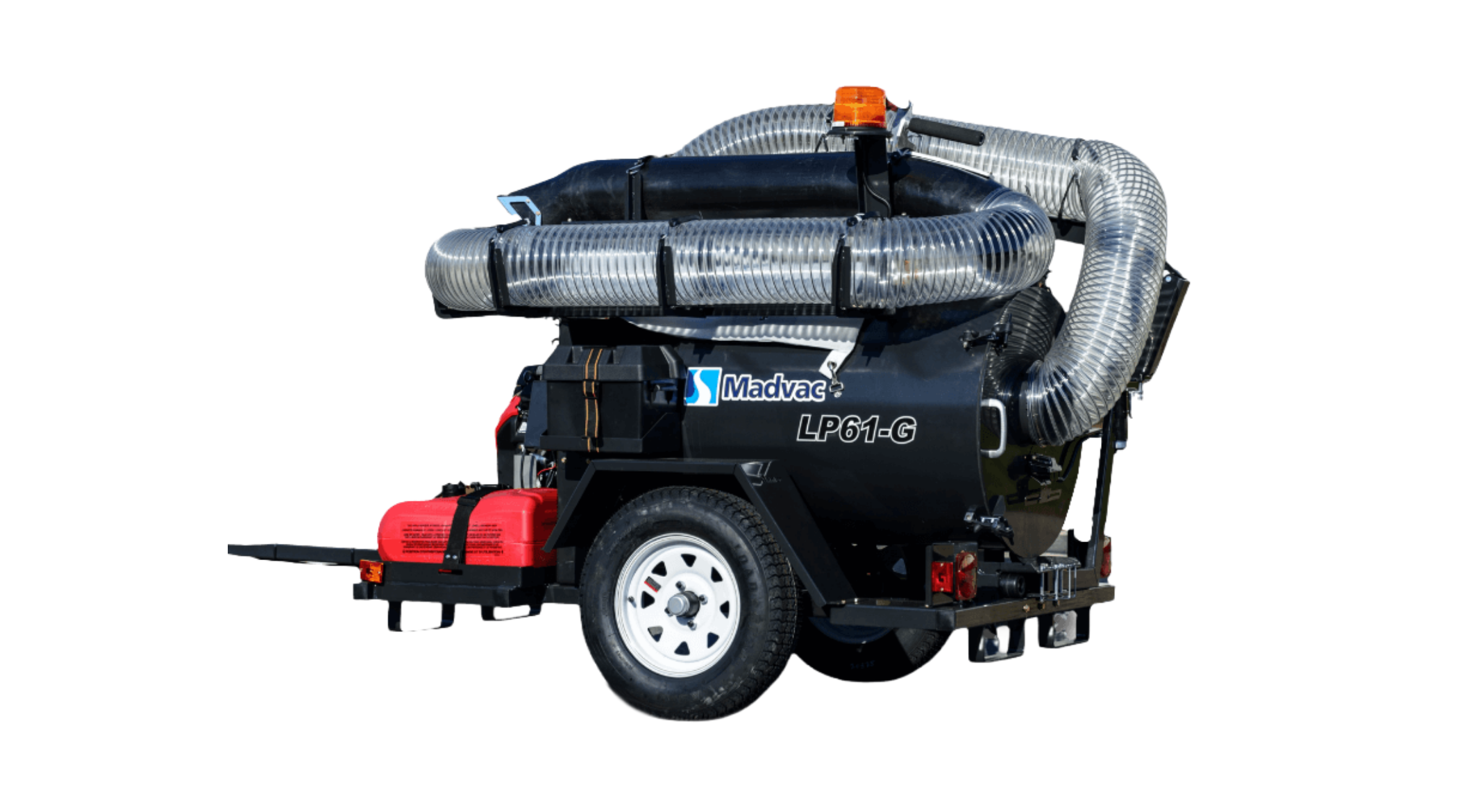

Trailer-Mount Configuration

Specification Measurement
Length 130 in
Width 47.2 in
Height 57.5 in
Weight 952 lbs

⚙️ Engine & Power

  • Engine: Vanguard 400 single-cylinder

  • Power: 14 HP

  • Displacement: 24.9 cu in (408 cc)

  • Engine Type: Air-cooled, 4-stroke

  • Fuel Type: Gasoline (87 Octane / AKI 87 / RON 90)

  • Fuel Capacity:

    • 1.6 US gal engine tank

    • Two 5.2 US gal jerry cans

    • 12 US gal total capacity

  • Exhaust: Vanguard Super Lo-Tone muffler

  • Battery: 12-volt heavy-duty battery

🌪️ Vacuum & Airflow System

  • Vacuum Rating: Up to 2,200 CFM

  • Air Flow Speed: Up to 7,700 ft/min

  • Vacuum Fan Diameter: 14 in

  • Vacuum Fan Position: Bottom-mounted

  • Vacuum Hose Diameter: 8 in

  • Vacuum Hose Length:

    • Standard: 25 ft (including handle)

    • Optional: 15 ft or additional 25 ft extensions

  • Hose Support: 360° rotating support arm

🗑️ Litter Collection System

  • Litter Capacity: 50 US gal (190 L)

  • Container Material: 16-gauge powder-coated steel

  • Dust Control:

    • Optional 2-micron interior cylindrical filter cartridge

🎛️ Controls & Safety

  • Emergency Stop Button
    Instantly shuts down engine and electrical system.

  • Ignition Switch
    3-position rotary key switch for engine and system control.

  • Electronic Throttle Control
    Allows precise RPM adjustment.

💡 Lighting

  • Operation: Rotating beacon

  • Trailer Transport:

    • 2 tail/brake lights

    • 4 corner lights

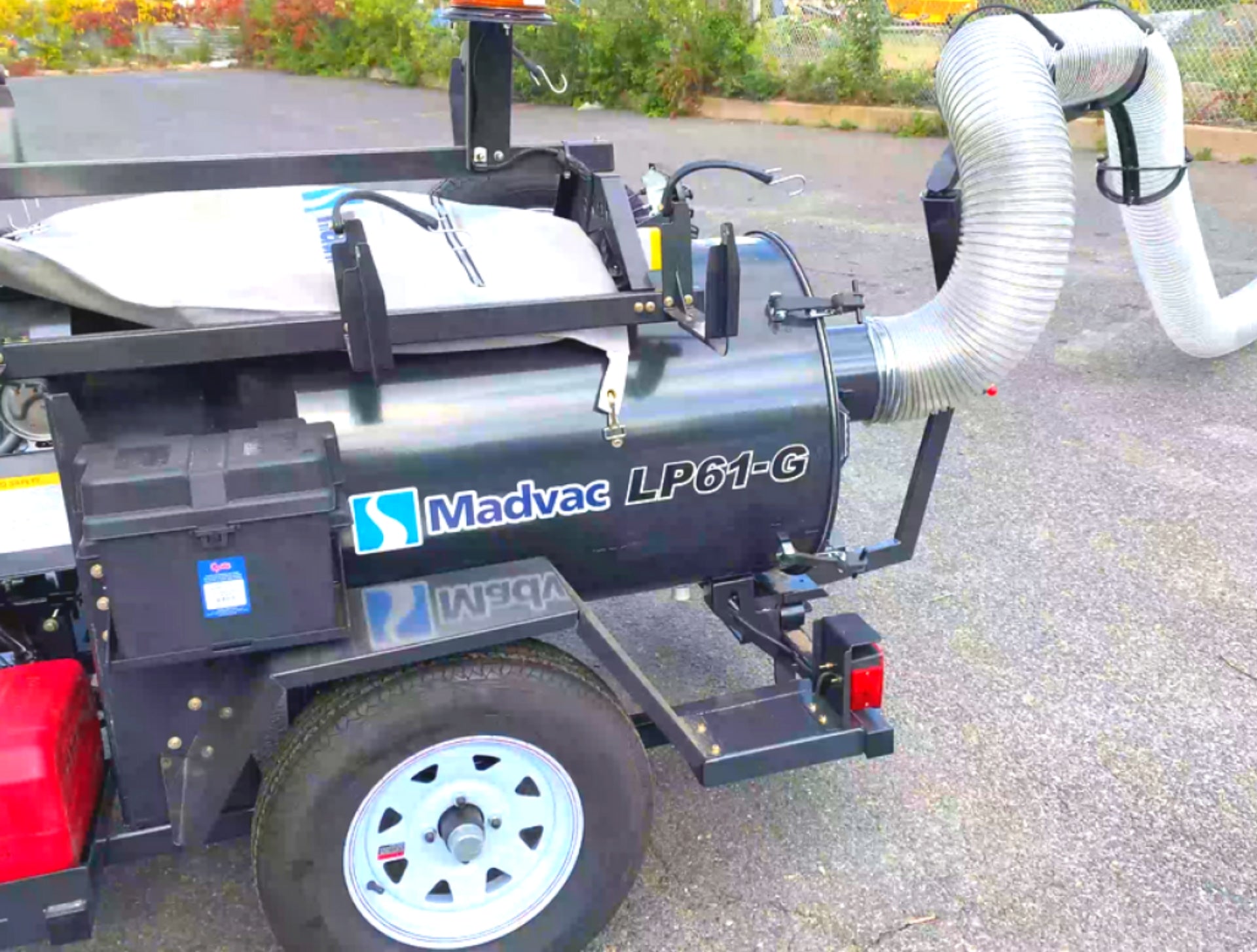

🛞 Trailer Features (Trailer-Mount Only)

  • Tires: 175/80R13 4-season radial tires

  • Optional Spare Tire

  • Hitch Options:

    • 2 in ball

    • 1.78 in ball

    • Pintle hitch

🎯 Ideal Applications

  • Parks & recreation departments

  • Municipal cleanup crews

  • Festivals & special events

  • Construction sites

  • Campuses & facilities

  • Parking lots & transit hubs

  • Contractors needing portable vacuum power

🟢 Why Buy Through Automation Hub

As an authorized Exprolink distributor, Automation Hub provides:

  • Configuration guidance (skid vs trailer)

  • Option and accessory planning

  • Procurement and delivery coordination

  • Fleet and event-based deployment advice

Contact Automation Hub for pricing, availability, and configuration support.
