Madvac LN50E VEV Electric All-Terrain Litter Vacuum

By Exprolink
$0.00

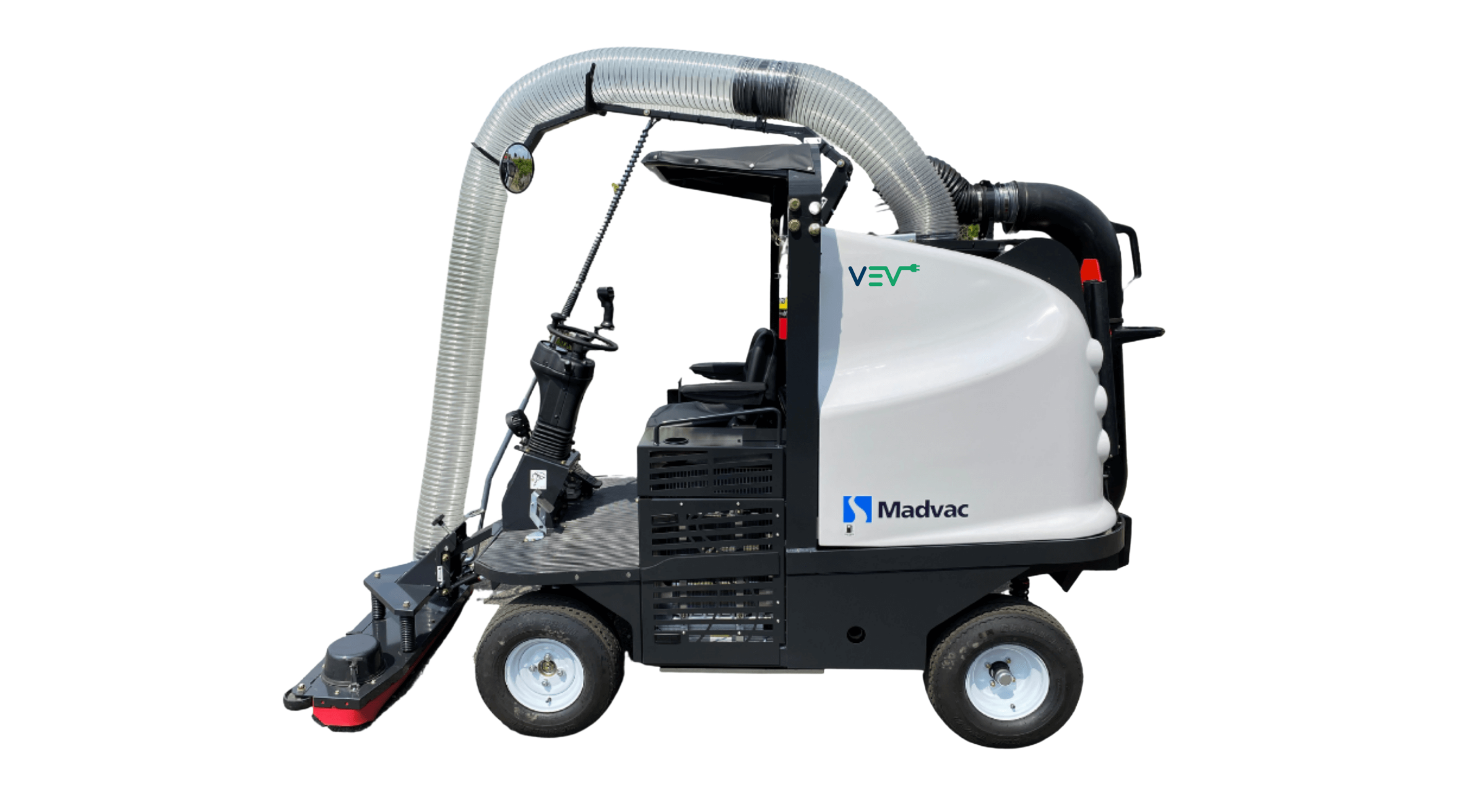

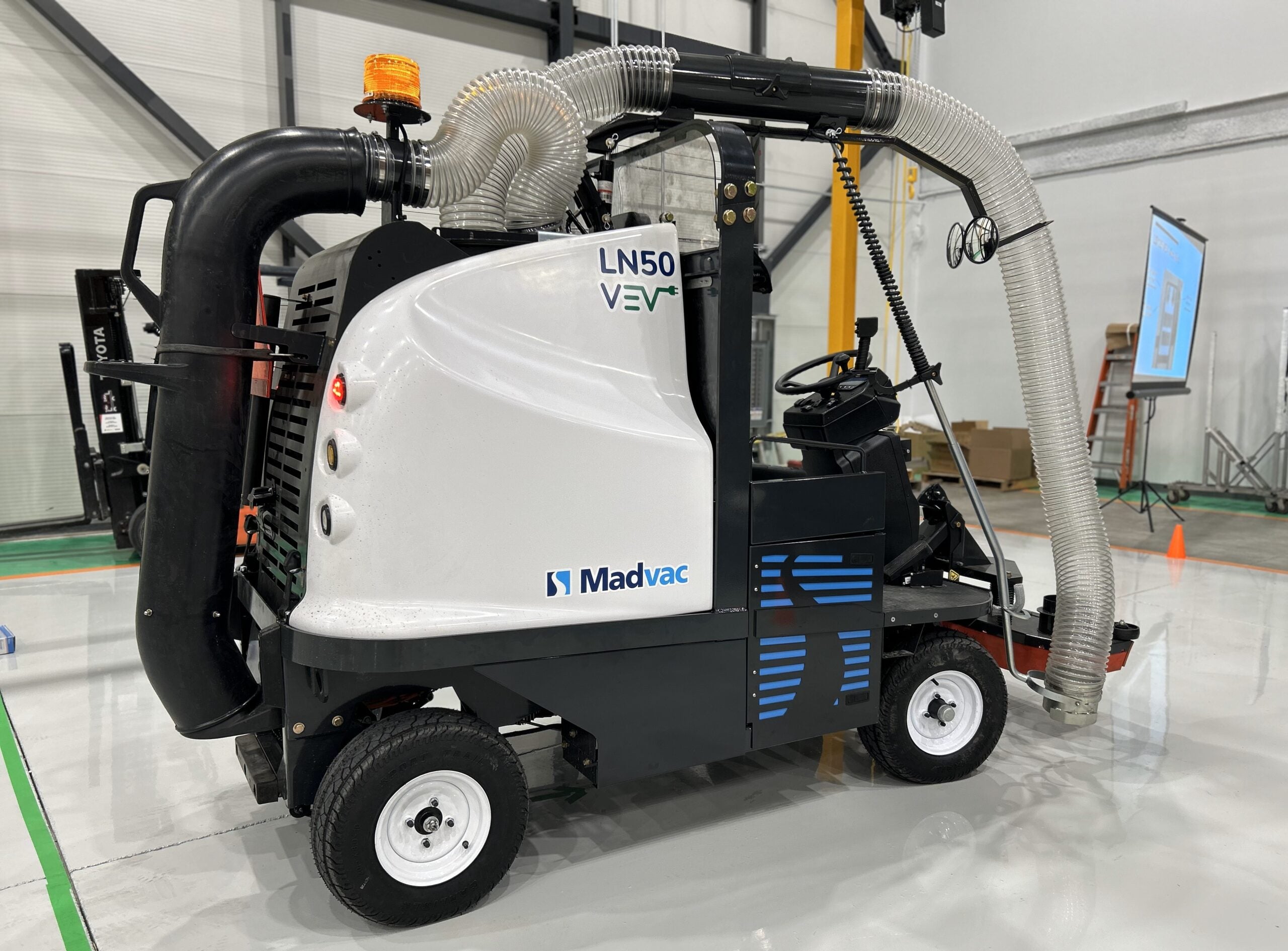

Exprolink LN50E VEV Electric All-Terrain Litter Vacuum

Madvac LN50E Electric

Available through Automation Hub — Authorized Exprolink Distributor

🛠️ Overview

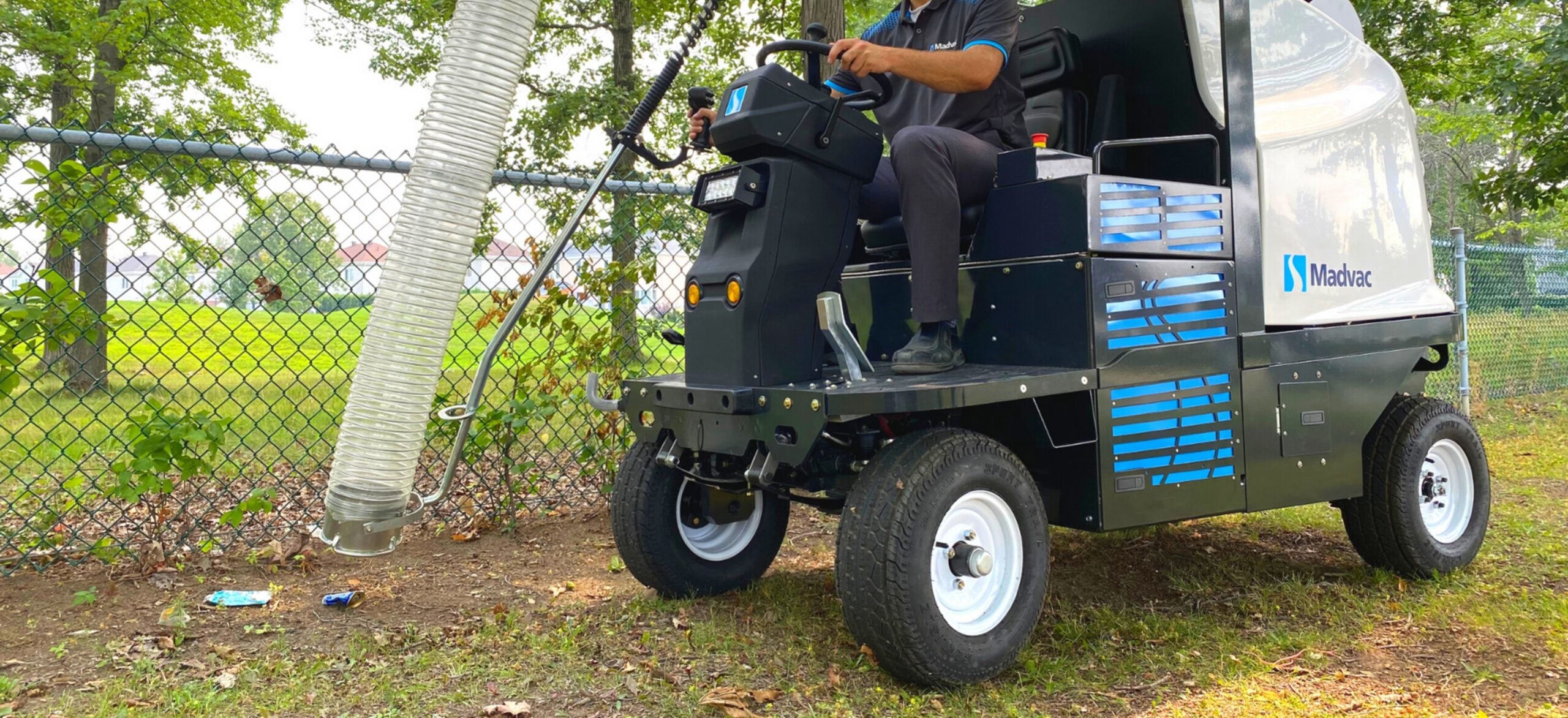

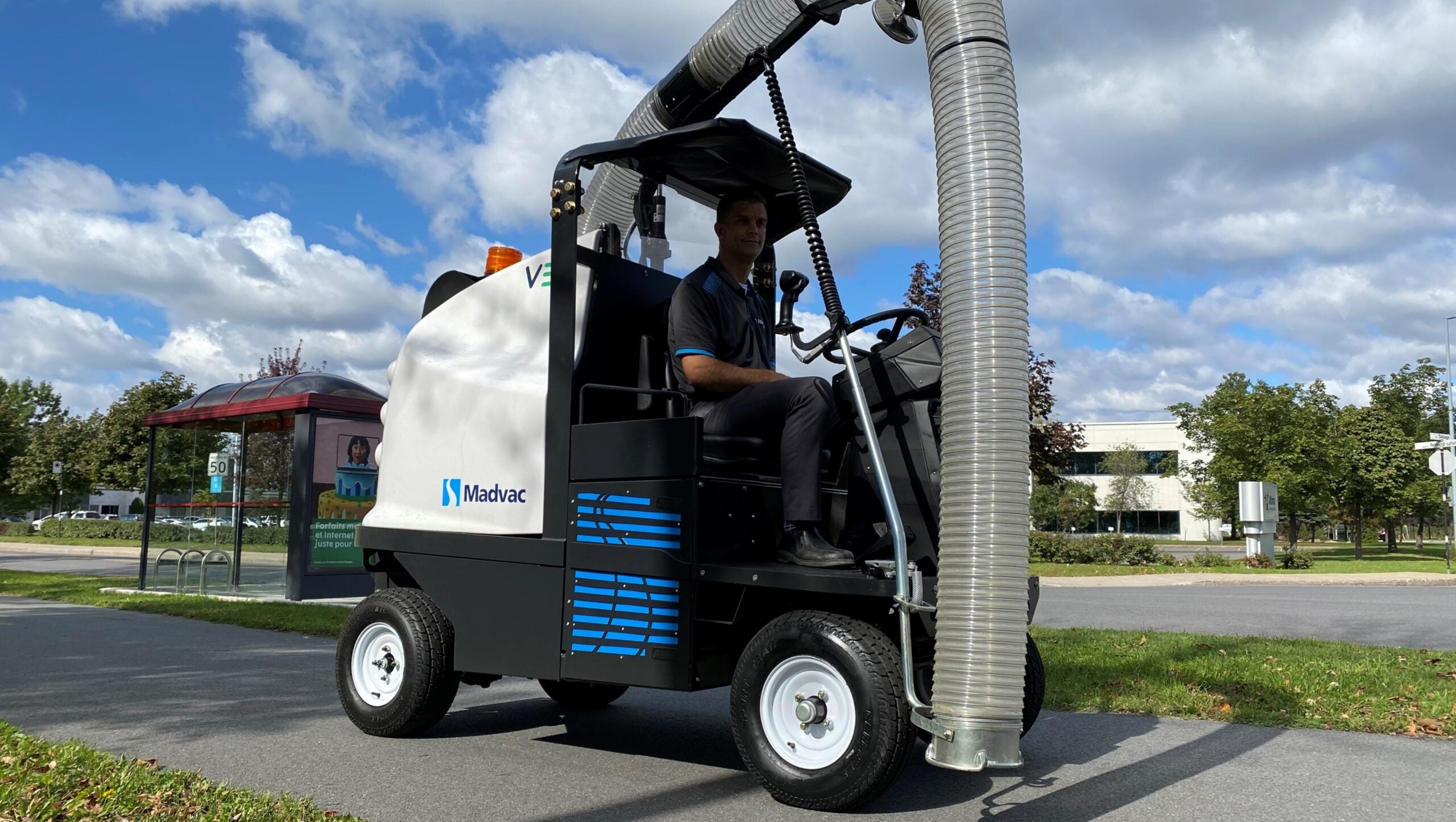

The Exprolink LN50E VEV is a fully electric, zero-emissions litter vacuum built on the proven LN50 platform. Designed for sidewalks, parks, alleys, campuses, and public spaces, the LN50 VEV delivers the same compact maneuverability and cleaning performance as its diesel counterpart—without engine noise, exhaust, or fuel costs.

Powered by a high-energy lithium-ion battery system and driven by an electric rear axle, this machine is ideal for municipalities and facilities transitioning toward quiet, sustainable fleet operations. A CDL is not required to operate the LN50 VEV.

🔑 Key Features

  • 100% Electric / Zero Emissions
    Quiet operation ideal for urban areas, campuses, and noise-sensitive zones.

  • No CDL Required
    Simple operation for municipal crews and facilities teams.

  • High-Capacity Lithium-Ion Battery System
    Up to 28.8 kWh with optional dual-battery configuration.

  • Hydraulic Vacuum Arm
    160° movement with hydraulic raise and lower control.

  • Compact, All-Terrain Design
    Narrow 48-inch wheel width and tight turning radius for confined spaces.

  • Fast Level-2 Charging
    Standard J1772 charging with onboard 6 kW chargers.

⚡ Electric Power & Charging

  • Battery Type: Lithium-Ion

  • Battery Capacity:

    • Up to 28.8 kWh total

    • Optional dual batteries (2 × 14.4 kWh)

  • System Voltage: 102 V

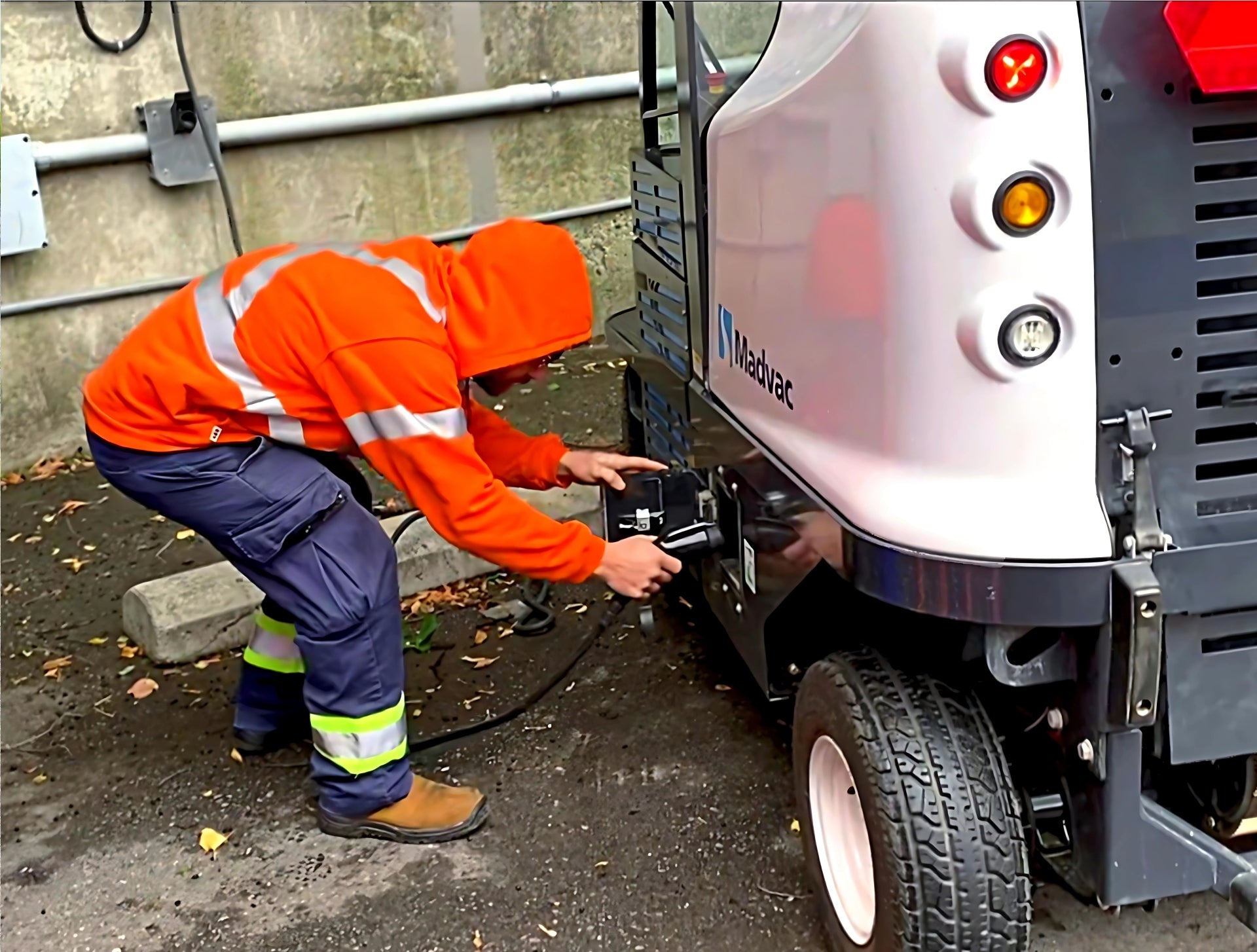

  • Charging System:

    • Integrated 6 kW onboard chargers

    • J1772 Level 2, 240 V / 24 A

  • Charging Time: ~5 hours (with two batteries installed)

📐 Dimensions & Weight

Specification Measurement
Length (Bumper to Bumper) 95 in
Overall Length (with front hose) 108 in
Width (Wheel) 48 in
Height 92 in
Ground Clearance 10 in
Wheelbase 69 in
Net Weight (Dry) 2,430 lbs
Payload Capacity 400 lbs
GVWR 3,300 lbs

🚀 Performance

  • Max Forward Speed: 12 mph

  • Max Reverse Speed: 6 mph

  • Cleaning Speed: Up to 84,480 sq ft/hour

  • Gradeability: 20% (11.3°)

  • Horizontal Slope: 36% (20°)

  • Curb Climb: 7 in

  • Turning Radius:

    • Internal: 60 in

    • External: 90 in (curb-to-curb)

🌪️ Vacuum & Suction System

  • Vacuum Rating: Up to 1,800 CFM

  • Vacuum Fan Diameter: 14 in

  • Air Speed: Up to 6,700 ft/min

  • Vacuum Motor: Brushless DC electric motor

  • Vacuum Arm:

    • 160° movement

    • 4 ft reach

    • Heavy-duty metal hose foot for abrasion resistance

  • Vacuum Hose Diameter: 7 in

  • Vacuum Head: 48 in (optional)

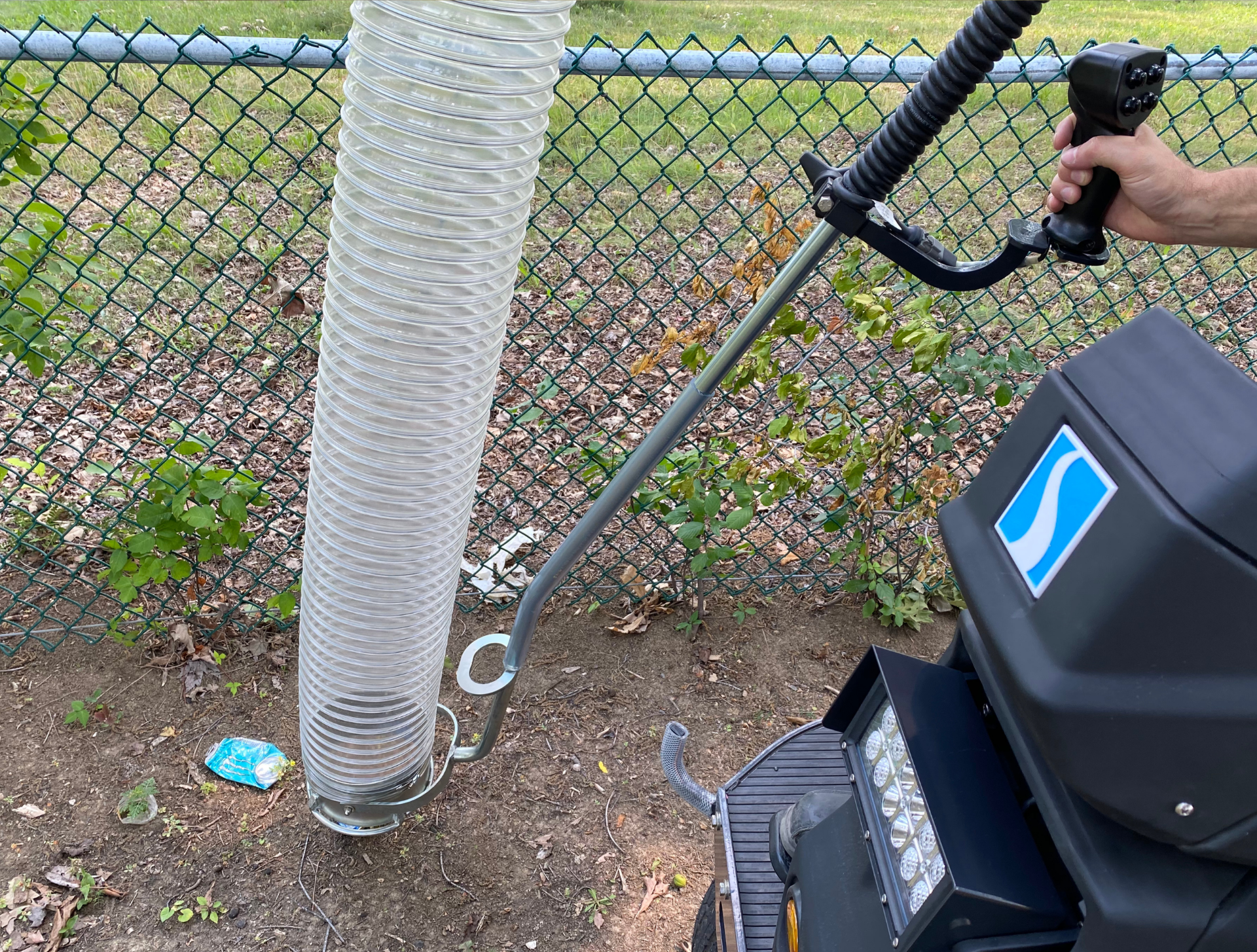

  • Wander Hose: 15 ft long, 6 in diameter

🗑️ Litter Container

  • Capacity:

    • 66 gal (250 L)

    • Up to 150 lbs

  • Construction: 16-gauge powder-coated steel

  • Dumping: Hydraulic tilt system

  • Bag Options:

    • Polypropylene fiber filter bag

    • Optional bagless Kevlar bin

🛞 Traction, Suspension & Braking

  • Drive: Electric propulsion (17:1 ratio)

  • Tires: 20.5 × 8 × 10 bias ply

  • Optional Turf Tires Available

  • Brakes:

    • Drum service brakes

    • Magnetic parking brake

  • Suspension:

    • Front & rear leaf springs (1,980 lb capacity each)

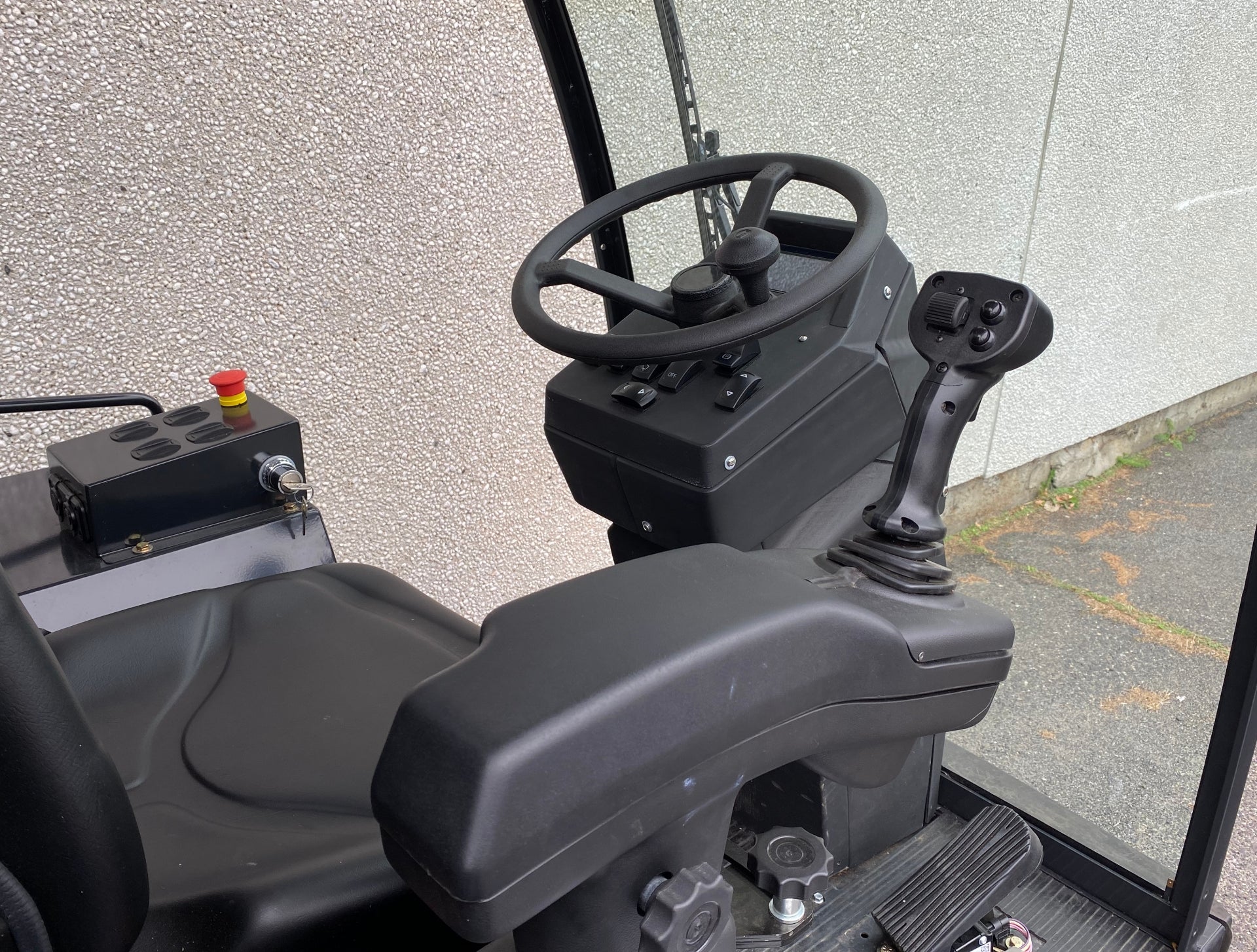

🧍 Operator Station & Controls

  • Power-assisted steering

  • Push-button Forward / Neutral / Reverse shifter

  • Adjustable ergonomic seat with armrests

  • Automotive-style steering wheel with steering ball

  • Vacuum arm up/down hydraulic controls

  • USB & 12V auxiliary outlets

  • Dashboard displays:

    • Battery charge level

    • Power & vacuum consumption

    • Hour meter & diagnostics

🛡️ Safety & Lighting

  • R.O.P.S. rollover protection

  • Emergency stop button

  • Backup alarm

  • CSA-approved seatbelt

  • Full LED lighting package

  • Amber hazard and flashing lights

  • Optional rear-view camera system

🔊 Noise Levels

  • Cabin: 85 dB

  • 5 ft: 75 dB (front)

  • 10 ft: 71 dB (front)

  • 20 ft: 69 dB (front)

Quieter than diesel alternatives and ideal for early-morning or residential operation.

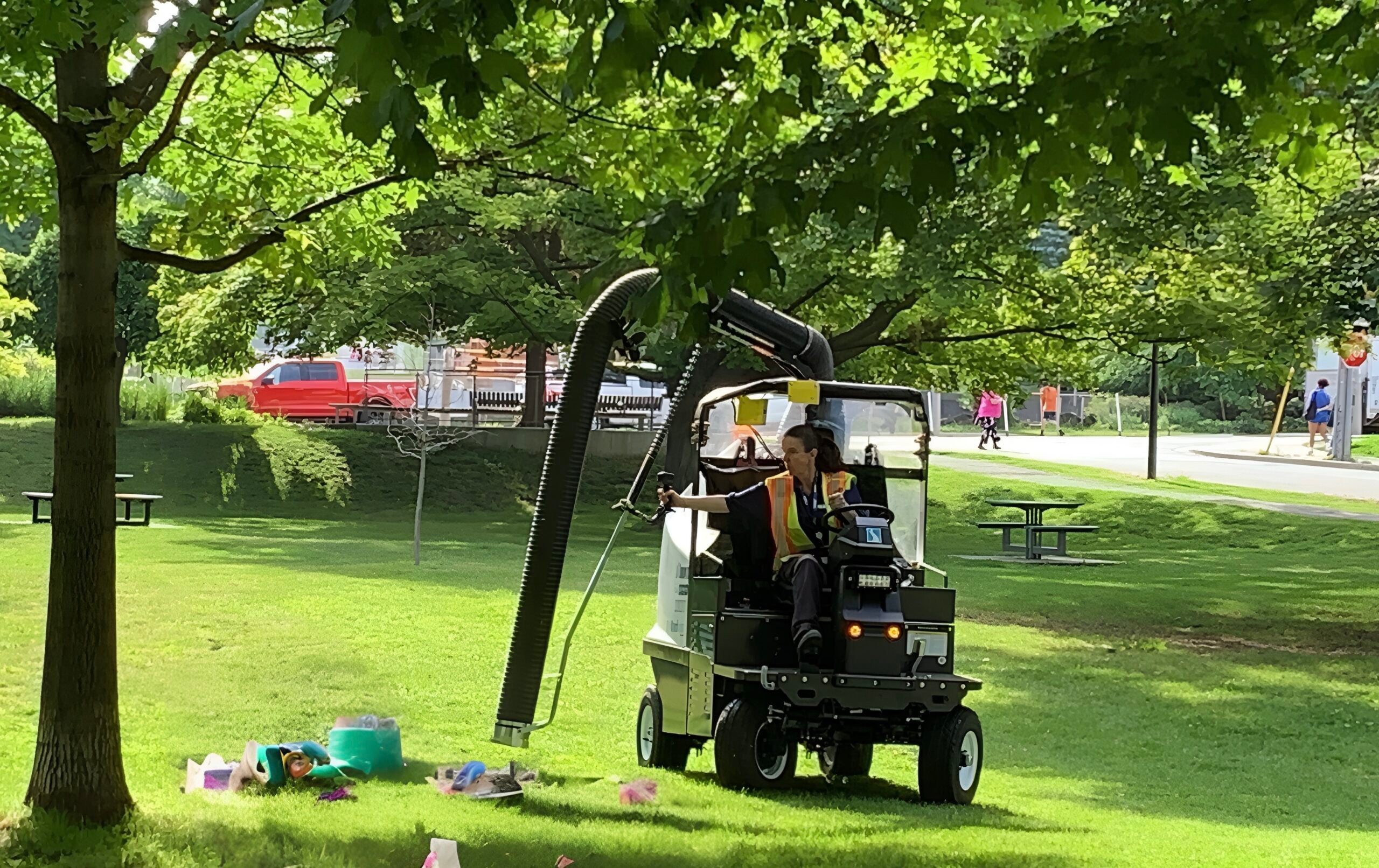

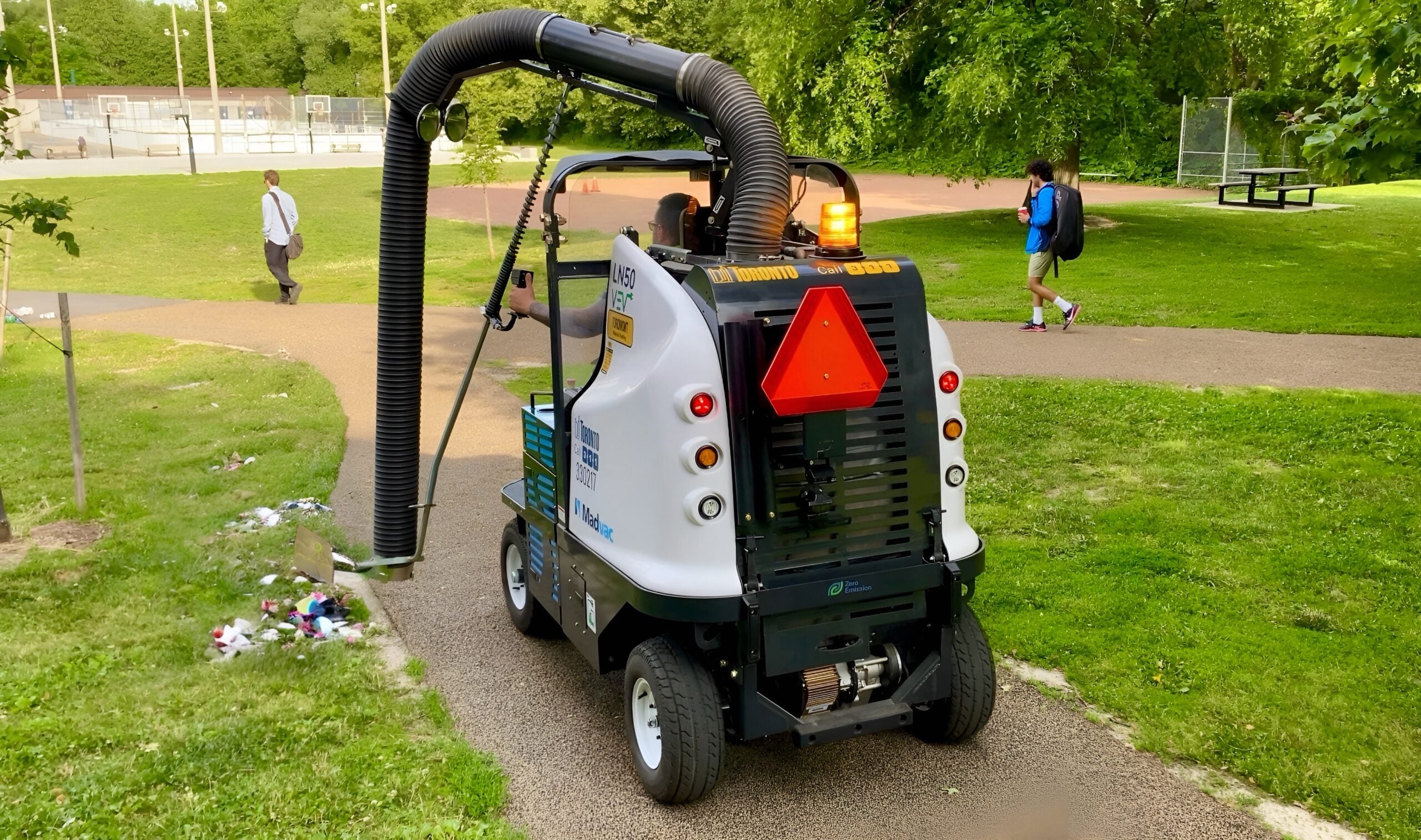

🎯 Ideal Applications

  • Municipal sidewalk and street cleaning

  • Parks & recreation departments

  • University and corporate campuses

  • Downtown business districts

  • Airports and transit areas

  • Noise- or emissions-restricted zones

🟢 Why Buy Through Automation Hub

As an authorized Exprolink distributor, Automation Hub provides:

  • Diesel vs electric fleet guidance

  • Configuration and option planning

  • Sustainability and grant alignment support

  • Procurement and delivery coordination

  • Long-term service partnership

Contact Automation Hub for pricing, availability, and deployment planning.
