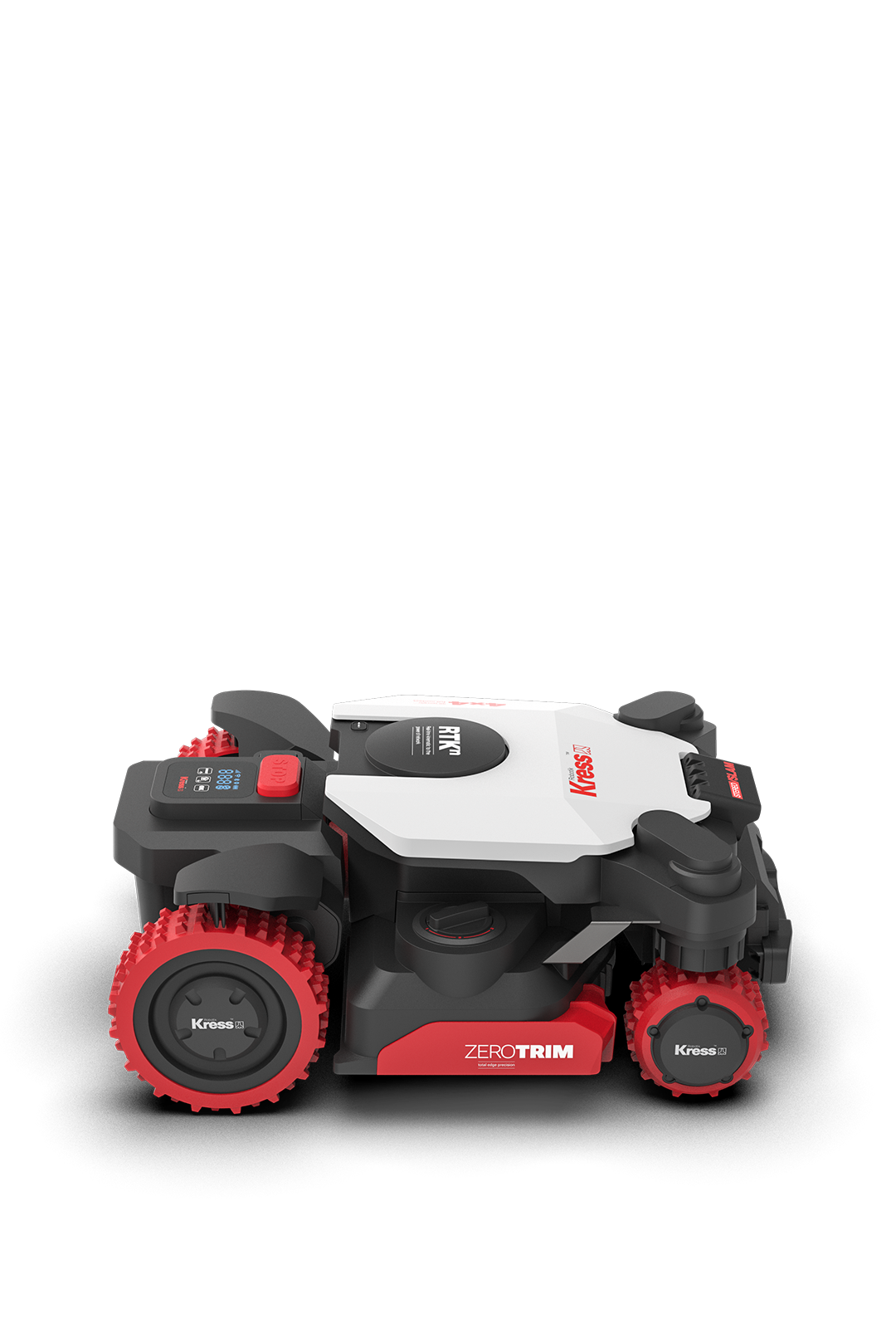

Kress KR286 EyePilot® 4x4 RTK Robotic Mower - 1.5 Acre

Maximum Coverage. Maximum Capability.

The Kress KR286 EyePilot® 4x4 is the most powerful model in the EyePilot residential lineup, designed for properties up to 1.5 acres.

With RTK satellite precision, AI-powered vision, and a true four-wheel-drive system, the KR286 delivers unmatched performance across large, complex, and sloped landscapes—without boundary wires or added infrastructure.

Why Choose the KR286?

Designed for Properties Up to 1.5 Acres

• Covers up to 1.5 acres per day (24-hour cycle)

• Ideal for large residential estates, campuses, and municipal properties

• Highest capacity model in the EyePilot 4x4 lineup

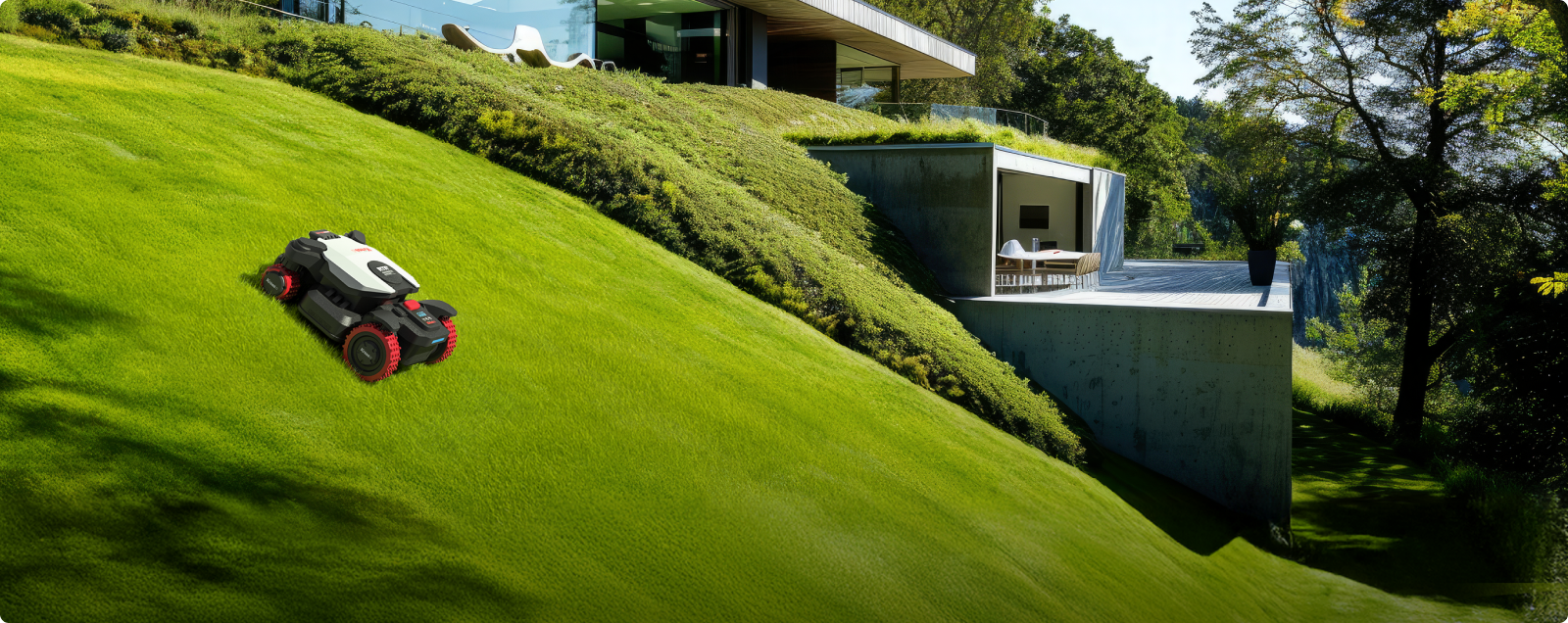

Built for Extreme Terrain

• True 4-wheel drive with 4 independent motors

• Handles slopes up to 84% (≈40°)

• Articulated chassis keeps all wheels grounded on uneven terrain

No Wires. No Infrastructure.

• RTK-guided navigation with centimeter-level accuracy

• No boundary wires, antennas, or base stations required

• Over-the-air correction ensures consistent positioning

AI Vision + Smart Navigation

• Stereo camera with AI object detection and avoidance

• Maintains accuracy even under tree cover or obstructed signals

• Continues operation using Vision Mode when GPS is limited

Edge-to-Edge Precision

• ZeroTrim™ cutting system minimizes manual trimming

• Self-leveling cutting deck maintains consistent cut across slopes

• Digitally adjustable cutting height by zone

Fully Connected & Autonomous

• Built-in 4G + Wi-Fi connectivity

• App-based control and monitoring

• Multi-zone management for complex properties

Key Features

• Four-wheel drive traction for slopes up to 84%

• Front-wheel steering for tight, turf-friendly turns

• Obstacle-aware navigation with intelligent avoidance

• Multi-zone routing between lawn areas

• Quiet operation at ~62 dB

• Autonomous mowing up to 1.5 acres per day

Technical Specifications

Coverage Capacity: Up to 1.5 acres per day
Cutting Width: ~9.5 in
Cutting Height: 1.57 – 3.54 in
Battery: 20V / 10 Ah
Max Slope: 84% (≈40°)
Navigation: RTK + Vision AI
Connectivity: Wi-Fi + Integrated 4G
Noise Level: ~62 dB
Drive System: All-wheel drive
Water Rating: IPX6

What’s Included

• Kress KR286 EyePilot robotic mower

• Charging base & tower

• Battery and charger

• Spare blades and installation hardware

• Setup tools and accessories

Ideal Applications

• Large residential properties (up to 1.5 acres)

• Sloped or uneven terrain

• Municipal green spaces

• University campuses

• Commercial landscaping and HOAs

The Automation Hub Advantage

Automation Hub delivers full-service deployment:

• Equipment consultation and sizing

• Professional installation and setup

• Training and onboarding

• Ongoing support and service

We ensure your automation investment is implemented correctly and performs long-term.

Where the KR286 Fits

The KR286 is ideal if you need:

✔ Coverage up to 1.5 acres
✔ Maximum performance on slopes and complex terrain
✔ Fully autonomous, wire-free operation
✔ A premium, high-capacity robotic mowing solution

Kress EyePilot Model Comparison

Why This Model Stands Out

Most robotic mowers struggle with:

• Large properties

• Sloped terrain

• Tree coverage and GPS interference

The KR286 solves all three with:

• RTK + Vision hybrid navigation

• True 4WD traction system

• AI-powered obstacle awareness

This makes it one of the most advanced robotic mowers available in its class.

Call to Action

Automate large-scale mowing with precision and power.

Contact Automation Hub to:

• Request pricing

• Schedule a demo

• Get expert recommendations
