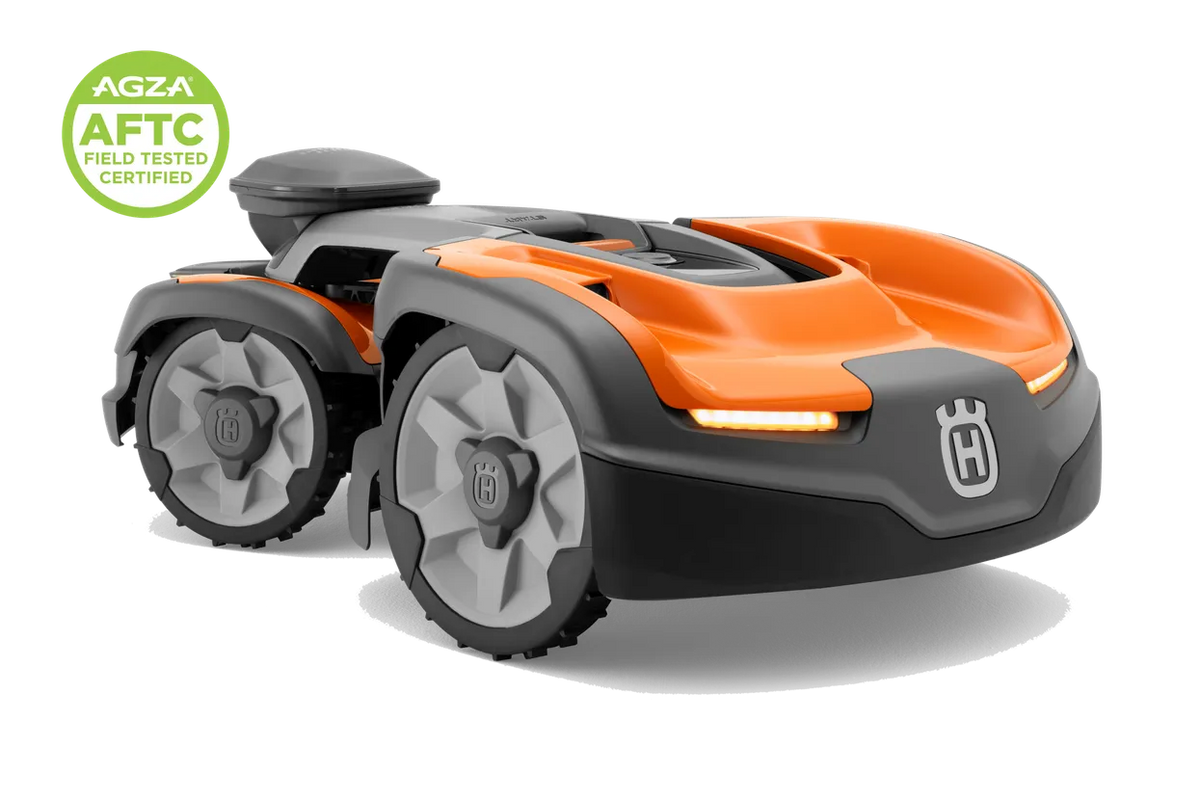

Husqvarna Automower 535 AWD EPOS Commercial Robotic Lawn Mower

Commercial All-Wheel-Drive Robotic Mower for Steep Slopes & Difficult Terrain

$4,999.99

The Husqvarna Automower® 535 AWD EPOS® is a professional all-wheel-drive robotic lawn mower engineered for steep slopes, rough terrain, complex commercial landscapes and properties where traction is the primary challenge.

Unlike commercial robotic mowers designed primarily to maximize acreage on relatively flat turf, the 535 AWD EPOS combines true all-wheel drive, an articulated pivoting body and up to 70% / 35° slope capability with Husqvarna's wire-free EPOS® satellite navigation.

That makes it an especially compelling autonomous mowing solution for municipalities, parks, schools and universities, hospitals, resorts, corporate campuses, golf properties, commercial estates and other professionally maintained landscapes with difficult terrain.

The 535 AWD EPOS also incorporates Husqvarna Fleet Services™, virtual work areas, customizable mowing patterns, temporary stay-out zones, virtual transport paths, ultrasonic obstacle detection, five pivoting cutting blades, amber warning lights, GPS theft tracking and over-the-air firmware updates.

Automation Hub Price: $4,999.99

Husqvarna Automower 535 AWD EPOS at a Glance

These specifications correspond to current U.S./Canadian model 970 74 55-05.

Built for Extreme Commercial Terrain

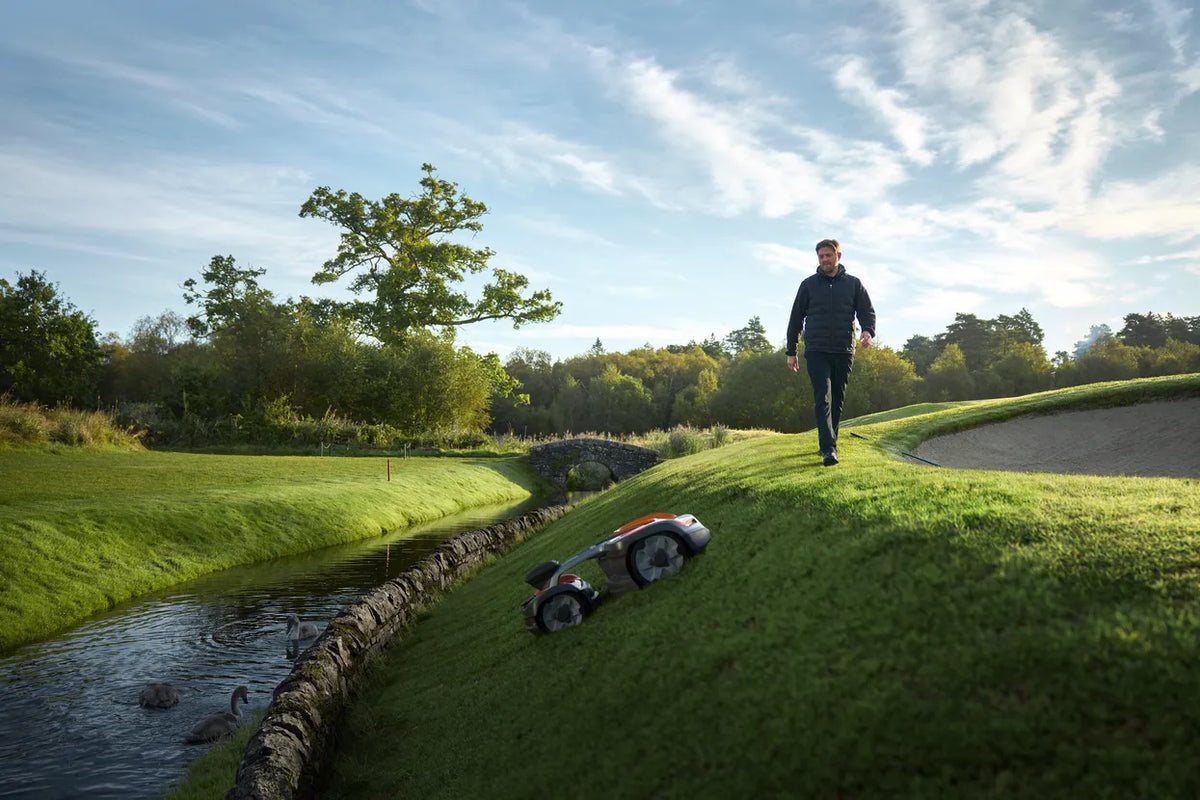

The defining feature of the 535 AWD EPOS is its ability to operate on terrain that can exceed the capabilities of conventional robotic mowers.

Husqvarna rates the mower for slopes up to:

70% Grade / Approximately 35°

inside the installation.

It can also handle slopes of up to:

50% at the Boundary

Husqvarna combines its AWD system with large, coarse-tread wheels to provide traction on severe grades and difficult terrain.

That makes the 535 AWD EPOS particularly interesting for:

• Steep commercial lawns
• Hillside campuses
• Municipal embankments
• Parks with major elevation changes
• Sloped hospital campuses
• Resorts
• Corporate estates
• Golf properties
• Difficult common areas
• Uneven professional landscapes
• Areas where repeatedly operating conventional mowing equipment is undesirable

For this mower, terrain matters more than maximum acreage.

True All-Wheel Drive

The Automower 535 AWD EPOS uses a genuine all-wheel-drive system.

Rather than simply powering the rear wheels, Husqvarna's AWD system optimizes control of each individual wheel to improve operation on demanding terrain.

This provides increased traction when the mower encounters:

• Steep grades
• Uneven ground
• Rough turf
• Slippery grass
• Elevation changes
• Difficult transitions

For a commercial property where wheel slip or slope is preventing the use of conventional autonomous mowers, AWD can be more valuable than simply selecting the machine with the highest acreage specification.

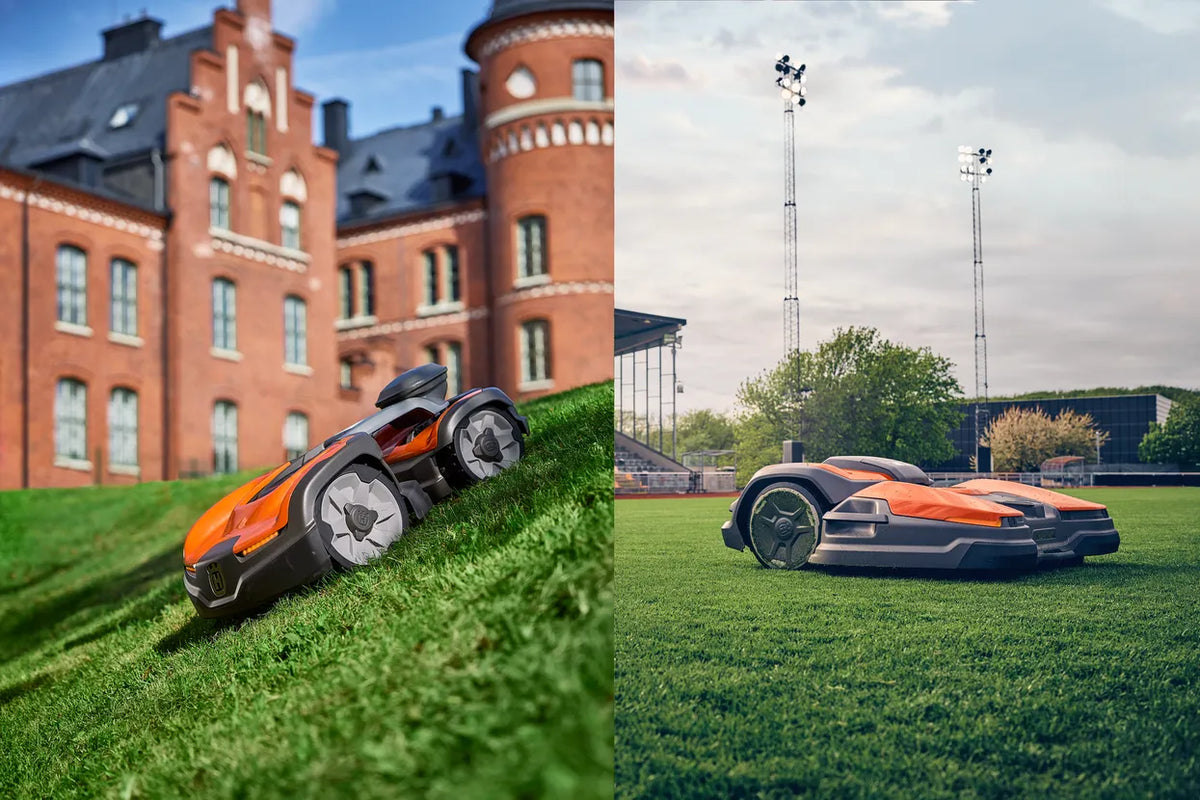

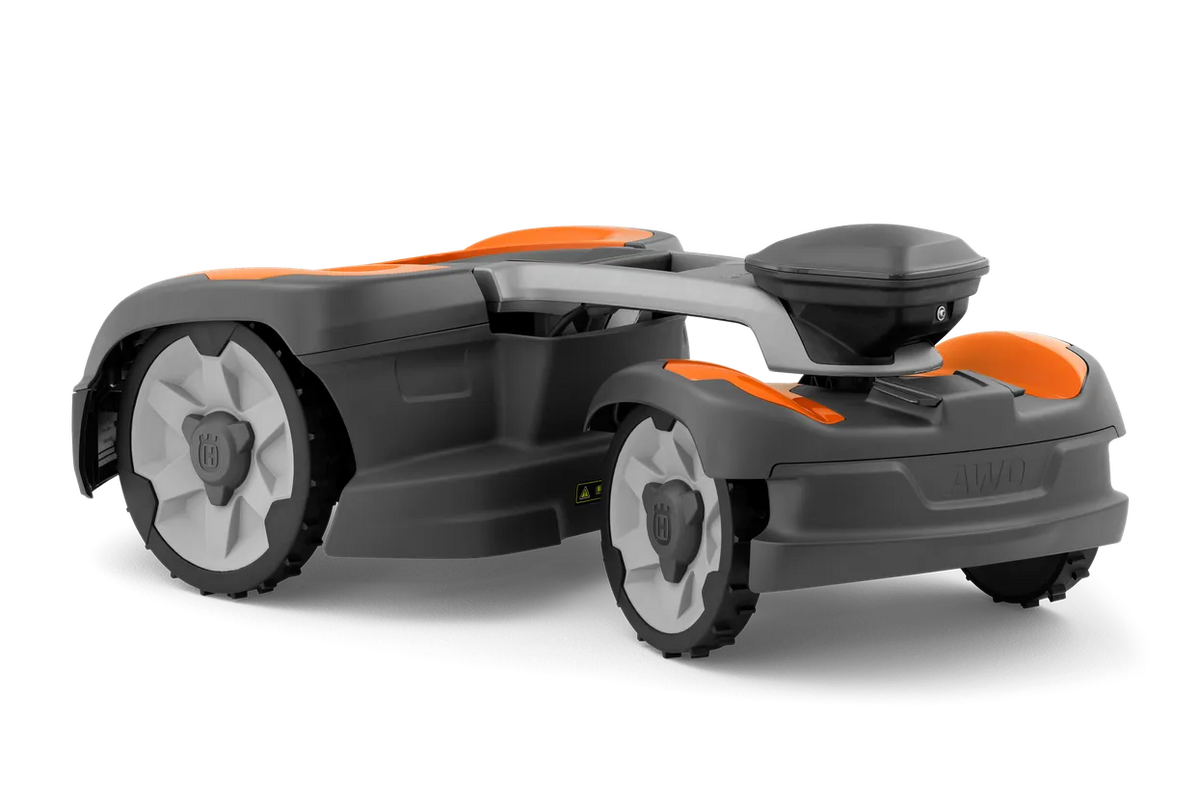

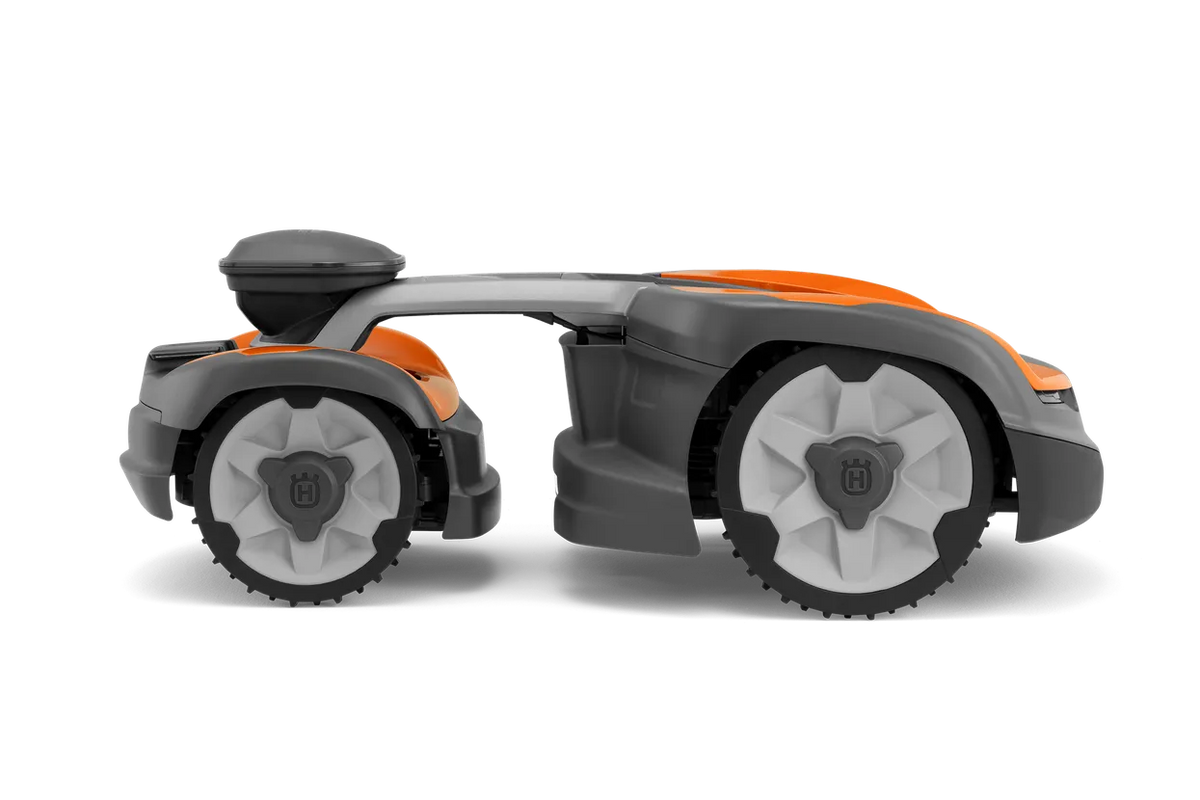

Articulated Pivoting Body

The 535 AWD EPOS isn't simply a standard robotic mower with four powered wheels.

It uses an articulated rear-body design that allows the front and rear portions of the machine to pivot relative to one another.

Husqvarna says this provides excellent maneuverability on complex lawns while improving traction across rough terrain.

The combination of:

AWD + Articulated Steering + 70% Slope Capability

is what separates the 535 AWD EPOS from the rest of Husqvarna's commercial Automower lineup.

Commercial Coverage Up to 1.5 Acres

Husqvarna provides several useful capacity ratings for the 535 AWD EPOS.

Nominal Lawn Size

1 Acre ±20%

Standard 48 Capacity

Up to 1.5 Acres / 48 Hours

Sports 24 Capacity

Up to 0.75 Acre / 24 Hours

The mower is capable of remaining active for up to 24 hours per day, automatically returning to charge as necessary.

This is an important distinction when comparing commercial robotic mowers.

The 535 AWD EPOS isn't intended to beat the 560 or 580 on raw acreage.

Its advantage is maintaining turf that may be too steep or difficult for those machines.

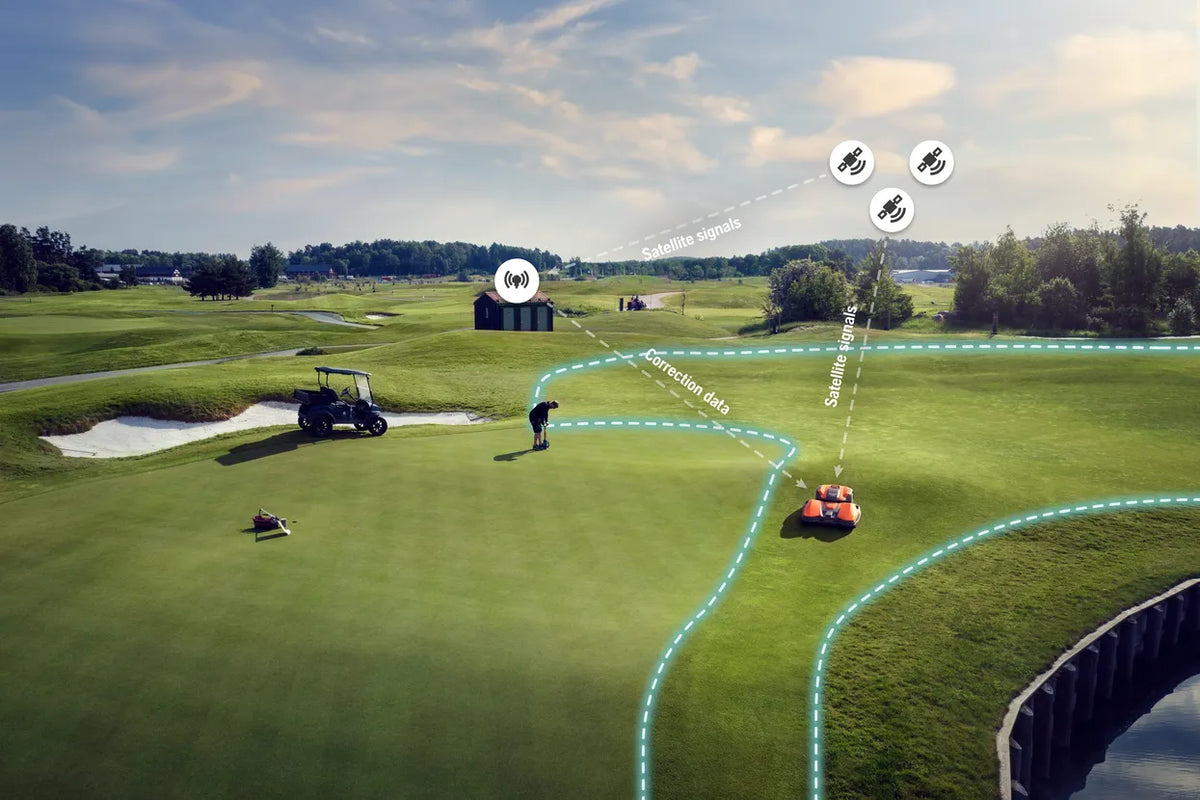

Husqvarna EPOS® Wire-Free Technology

The 535 AWD EPOS supports Husqvarna EPOS® virtual boundaries, eliminating the need for traditional perimeter wire when configured for EPOS operation.

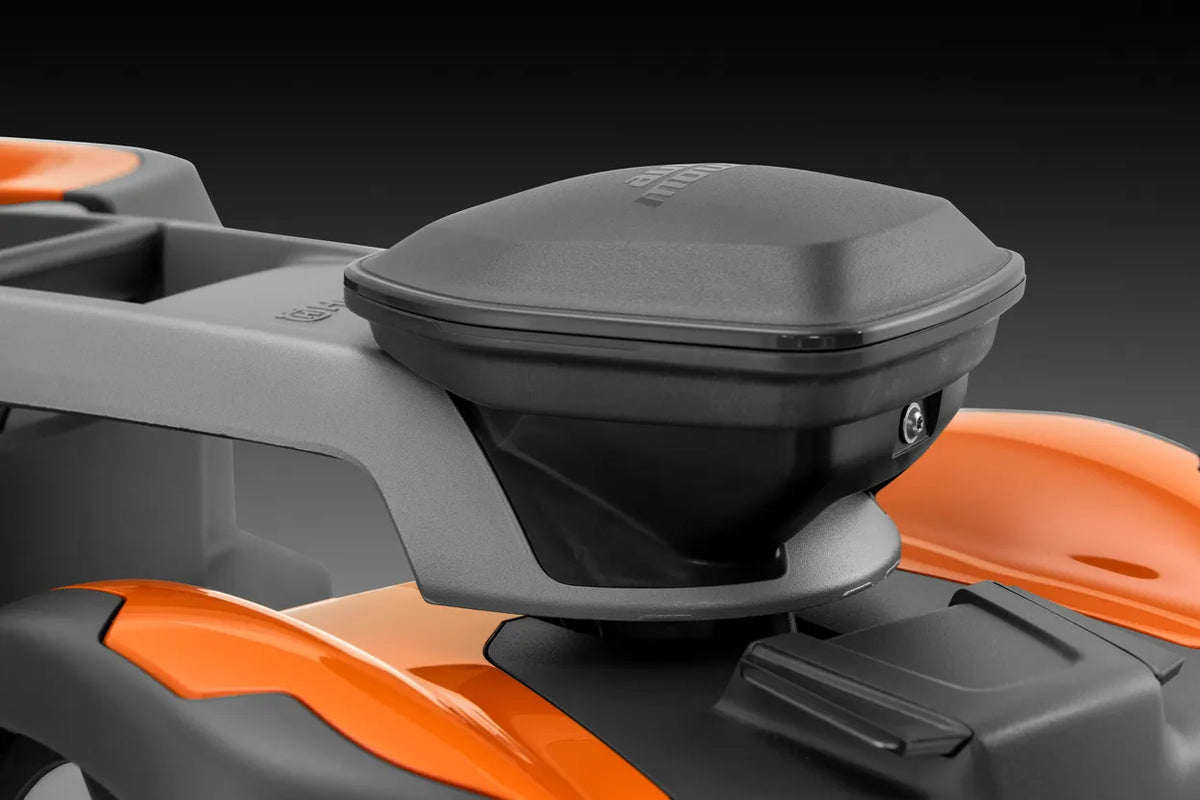

EPOS stands for Exact Positioning Operating System and uses RTK-GNSS satellite navigation to provide positioning accuracy down to approximately 2 cm under suitable conditions.

With EPOS, operators can digitally configure:

• Work areas
• Virtual boundaries
• Temporary stay-out zones
• Transport paths
• Cutting heights
• Mowing schedules
• Cutting patterns

This gives commercial operators substantially more flexibility than a permanent physical boundary installation.

Physical Wire or Virtual EPOS

An interesting advantage of the 535 AWD EPOS is that Husqvarna lists it as compatible with both:

Physical Boundary Wire

and

Virtual EPOS Boundaries

That flexibility may be valuable for properties with existing Automower infrastructure or sites where certain areas present challenges for satellite reception.

Automation Hub can evaluate the property and help determine the appropriate installation method.

EPOS Reference Station Required

For EPOS virtual-boundary operation, a compatible Husqvarna EPOS Reference Station is required and is not included with the mower.

Husqvarna currently lists both the EPOS RS5 and EPOS RS 4G among compatible accessories for the 535 AWD EPOS.

Automation Hub can assist with:

• Site evaluation
• Satellite-visibility assessment
• Reference-station selection
• Reference-station placement
• Charging-station placement
• Work-area planning
• Future fleet expansion

For a commercial deployment, we recommend designing the complete autonomous mowing system rather than treating the mower and positioning infrastructure as separate purchases.

Customized Work Areas

Commercial properties rarely have identical requirements across every section of turf.

With Husqvarna's connected platform, individual work areas can be configured with their own:

• Mowing schedule
• Cutting height
• Cutting pattern

Temporary stay-out zones can also be activated or deactivated through the app.

For example, a commercial campus might maintain a high-visibility entrance differently from a steep secondary area.

One robot can therefore perform different mowing assignments depending on where it is working.

Professional Systematic Mowing Patterns

The 535 AWD EPOS can operate systematically rather than relying only on random robotic mowing.

Husqvarna supports customizable patterns including:

• Parallel
• Checkerboard
• Diamond patterns

This allows professional turf managers to produce a more traditional striped or patterned appearance on compatible turf areas.

That can be especially valuable for:

• Corporate campuses
• Sports facilities
• Schools
• Universities
• Golf properties
• High-visibility commercial grounds

Temporary Stay-Out Zones

Need the robot to temporarily avoid an area?

EPOS allows operators to create digital stay-out zones without modifying the physical installation.

Potential applications include:

• Turf repair
• Seeding
• Irrigation work
• Construction
• Outdoor events
• Temporary structures
• Damaged turf
• Areas undergoing recovery

Once the restriction is no longer necessary, the stay-out zone can be removed digitally.

This is one of the major operational advantages of a virtual-boundary commercial mower.

Virtual Transport Paths

The 535 AWD EPOS supports virtual transport paths.

These allow the mower to navigate designated routes between work areas and its charging infrastructure. Husqvarna lists “Virtual transport path” as the mower's guide-following method.

For a complex commercial property, that can allow one mower to service multiple designated turf areas without requiring personnel to manually transport it every time.

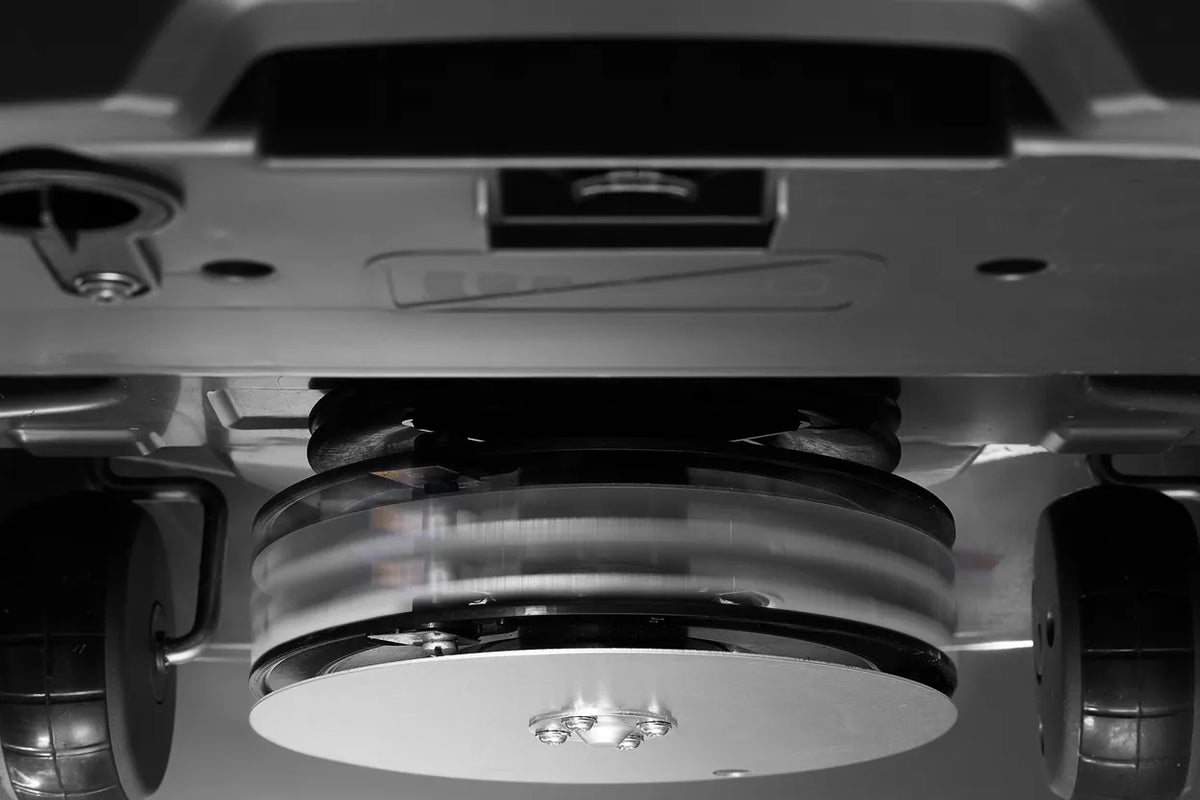

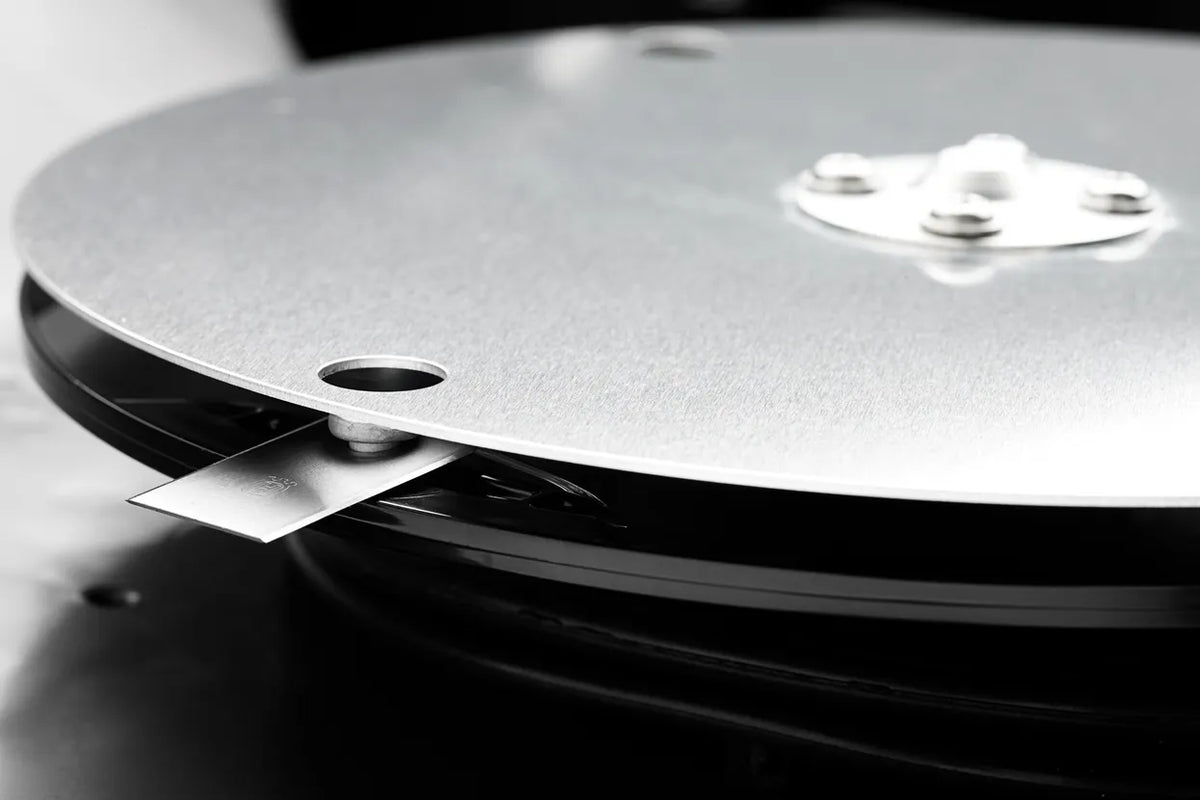

5-Blade Commercial Cutting System

The 535 AWD EPOS uses a five-blade cutting system designed for professional turf maintenance.

Cutting Width

8.7 Inches

Cutting Height

1.2–2.8 Inches

Cutting Height Adjustment

Electric

Blades

5 Pivoting Razor Blades

The mower also includes a skid plate and supports dual cutting direction.

The electric cutting-height system allows operators to change the desired cutting height remotely through the connected platform.

8Ah Battery with 145-Minute Runtime

The 535 AWD EPOS uses an 8Ah lithium-ion battery.

Husqvarna specifies:

Typical Mowing Time

145 Minutes

Typical Charging Time

45 Minutes

Charging Current

7A

Charging is fully automatic.

The mower returns to its charging station when necessary and resumes its autonomous mowing operation according to its schedule.

Ultrasonic Obstacle Detection

The 535 AWD EPOS uses ultrasonic sensors to help identify obstacles in front of the mower.

Husqvarna says these sensors help the mower avoid obstacles, while the safety system immediately shuts down cutting if the mower is lifted or tips over.

This is an important distinction from the newer 560 and 580 EPOS platforms, which use radar and can support Husqvarna's optional AI Vision technology.

535 AWD EPOS

Ultrasonic sensing + AWD + extreme terrain capability

560 / 580 EPOS

Radar + optional AI Vision + higher acreage productivity

The 535's specialization is terrain, not AI Vision.

Amber Warning Lights

Because commercial autonomous mowers may operate during low-traffic nighttime hours, the 535 AWD EPOS includes amber warning lights.

The lights can provide pulsating or solid illumination to increase awareness of the mower while it operates at night.

That's particularly useful for:

• Universities
• Corporate campuses
• Parks
• Municipalities
• Hospitals
• Resorts
• Commercial estates

Husqvarna Fleet Services™

The 535 AWD EPOS is designed around professional remote management through Husqvarna Fleet Services™.

Fleet managers can remotely monitor and control commercial robotic mowers using connected devices.

Husqvarna specifically highlights the ability to manage functions such as:

• Cutting height
• Mowing schedule
• Cutting pattern
• Mower status
• Alerts
• Location

for individual machines or a larger mower fleet.

This allows an organization to scale from a single autonomous mower to multiple units without managing every robot individually in the field.

Multiple Robots Can Work Together

For properties that need more capacity, multiple 535 AWD EPOS units can be deployed within the same overall property and managed through Husqvarna Fleet Services.

Virtual work areas and staggered schedules can be used to coordinate operation across a larger autonomous fleet.

That can be particularly useful for large:

• Corporate estates
• Golf properties
• Parks
• Campuses
• Resorts
• Municipal facilities

with multiple steep mowing areas.

Professional User Interface

The 535 AWD EPOS uses a Professional User Interface/App rather than a conventional onboard display.

Husqvarna lists:

User Interface: Professional User Interface/App
Display: None
Connectivity: Bluetooth + Cellular
App Control: Husqvarna Fleet Services

Most configuration and fleet management can therefore be handled through the connected professional platform rather than requiring personnel to interact directly with the mower.

FOTA – Firmware Over the Air

The 535 AWD EPOS supports FOTA – Firmware Over The Air.

Fleet managers can perform supported firmware upgrades remotely through Husqvarna Fleet Services rather than manually connecting to each mower.

This becomes increasingly valuable as an organization expands from one autonomous mower to an entire fleet.

Built for 24/7 Commercial Operation

Husqvarna designed the 535 AWD EPOS for operation 24/7 throughout the grass-growing season, subject to normal maintenance and cleaning.

Its free-hanging razor-blade cutting system is designed to continue delivering a cutting result during rainy conditions.

That broad operating window is one of the biggest advantages of commercial autonomous mowing.

The objective isn't to mow an entire property as quickly as a large conventional mower.

The robot can continuously maintain designated turf throughout the week without requiring an operator to sit on the machine.

Quiet Operation – 60 dB(A)

Husqvarna rates the 535 AWD EPOS at approximately:

60 dB(A)

Quiet electric operation can make autonomous mowing particularly attractive around:

• Hospitals
• Hotels
• Resorts
• Schools
• Universities
• Offices
• Residential-adjacent commercial properties

where conventional mowing noise can be disruptive.

Weatherproof Design

The 535 AWD EPOS carries an:

IPX4 Protection Rating

and is designed to operate outdoors throughout the mowing season.

Its free-hanging cutting blades allow the mower to continue maintaining turf during rainy conditions.

Built-In Theft Protection

Commercial autonomous equipment may spend substantial amounts of time operating unattended.

The 535 AWD EPOS includes multiple security features:

• GPS theft tracking
• GeoFence
• PIN protection
• Alarm
• Connected notifications

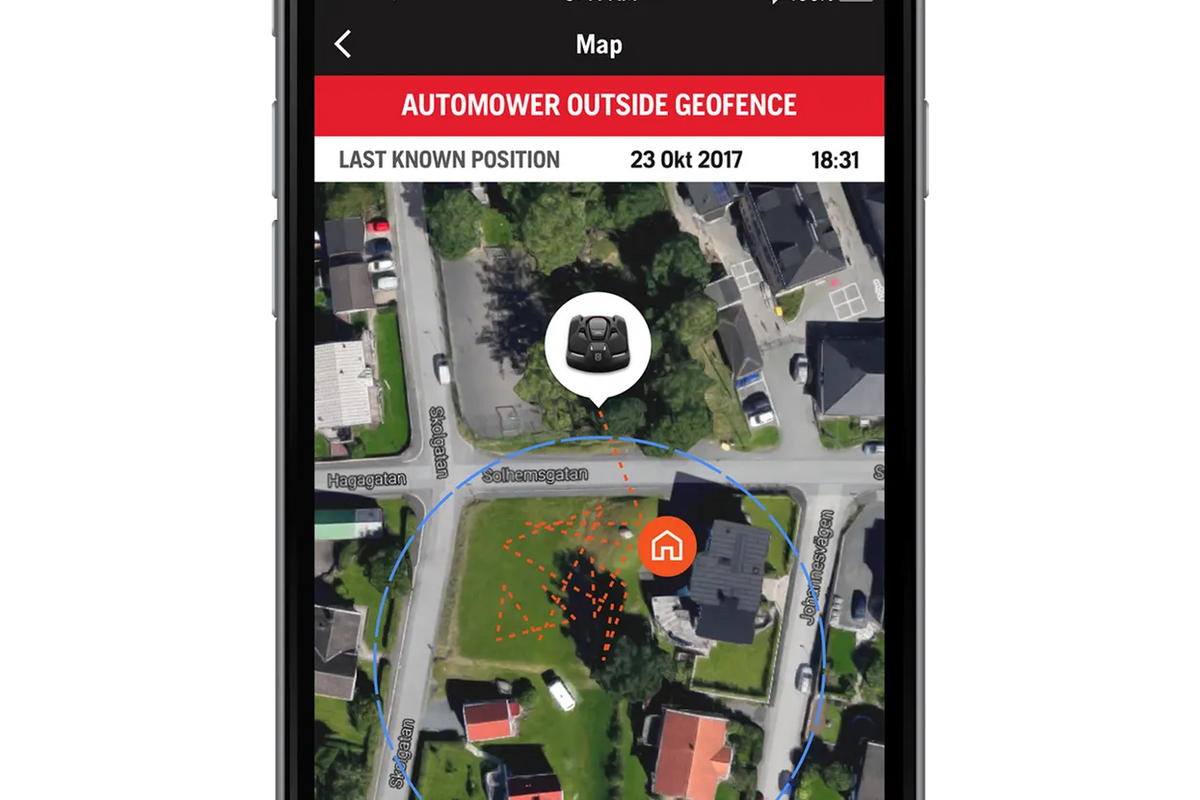

The GPS-based GeoFence can provide alerts if the mower is moved outside its permitted area.

Built-In Safety Systems

The 535 AWD EPOS incorporates multiple safety features.

These include:

• Ultrasonic obstacle sensing
• Lift sensor
• Tilt sensor
• Automatic cutting-system shutdown when lifted
• Automatic cutting-system shutdown if the mower tips over

These systems are especially important for autonomous equipment operating across professional properties.

What's Included?

Husqvarna currently lists the following with the 535 AWD EPOS:

• Husqvarna Automower 535 AWD EPOS
• Charging Station
• Power Supply
• 33-ft Low-Voltage Cable

Not Included

• EPOS Reference Station
• Extra Blades
• Wheel Brushes

Automation Hub can help configure the complete system rather than leaving customers to determine the required EPOS infrastructure and accessories on their own.

Compatible Accessories

Husqvarna currently identifies compatible accessories including:

EPOS Reference Station RS5

Provides the RTK-GNSS correction data required for compatible EPOS installations.

EPOS Reference Station RS 4G

Another compatible reference-station option currently listed by Husqvarna for the 535 AWD EPOS.

EPOS Attachment Kit

Provides mounting hardware for compatible EPOS reference stations.

Large Automower House

Provides additional protection for the mower and charging area.

Automation Hub can assist with selecting the appropriate accessories and positioning infrastructure for the installation.

Ideal Commercial Applications

Municipalities & Parks

The 535 AWD EPOS is particularly interesting for municipal properties with:

• Embankments
• Hills
• Uneven terrain
• Sloped common areas
• Difficult-to-access turf

Autonomous mowing can reduce the number of repetitive mowing hours spent on these challenging areas.

Schools & Universities

Campuses often contain steep slopes, landscaped hills and disconnected areas that aren't ideal for larger conventional robotic mowers.

The 535 AWD EPOS provides a specialized autonomous option for those difficult areas.

Hospitals & Healthcare Campuses

Quiet autonomous mowing combined with AWD can be valuable for large healthcare properties with hills and elevation changes.

Corporate Campuses & Commercial Estates

The mower can autonomously maintain difficult slopes while grounds personnel concentrate on trimming, landscaping, irrigation and other work.

Resorts & Hospitality

Rolling terrain and landscaped hills are common around resorts.

The 535 AWD EPOS can maintain suitable sloped areas while operating quietly and autonomously.

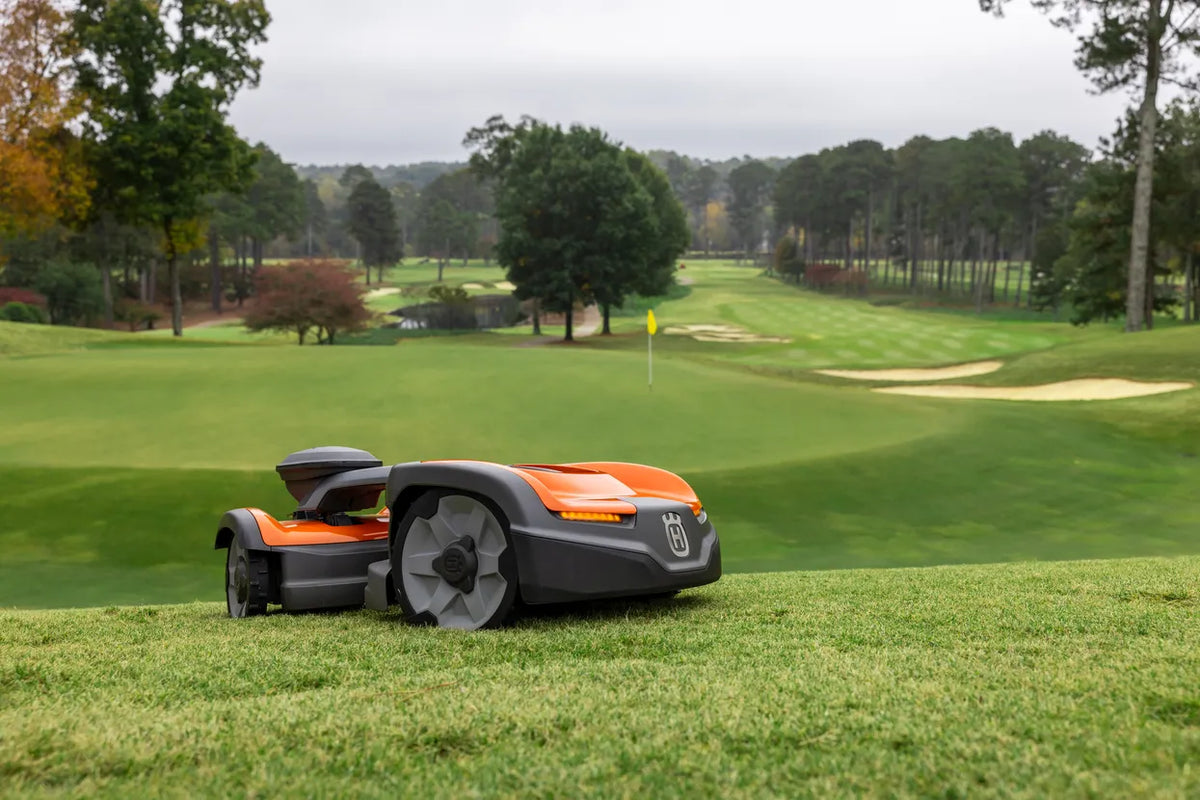

Golf Courses & Clubs

The 535 AWD EPOS may be particularly interesting for steep rough, clubhouse grounds, difficult banks, practice areas and other compatible turf.

Its 70% slope capability, AWD and articulated chassis are the key advantages for golf applications where terrain is more challenging than acreage.

535 AWD EPOS vs. 550H EPOS

These two $4,999.99 commercial machines solve very different problems.

Choose the 535 AWD EPOS when:

Steep slopes, traction and difficult terrain are the primary challenge.

Choose the 550H EPOS when:

The property has more moderate terrain but requires higher 2–3.6-inch cutting heights and greater acreage capacity.

535 AWD EPOS vs. 560 EPOS

The comparison with the newer 560 EPOS is equally important.

Choose the 535 AWD EPOS when:

The property contains severe slopes, difficult traction or rough terrain where AWD and 70% slope capability are the priority.

Choose the 560 EPOS when:

Terrain is less severe and the application prioritizes greater acreage productivity, lower cutting heights, radar sensing and optional AI Vision.

Why Autonomous Mowing on Steep Terrain?

Steep terrain can consume disproportionate amounts of labor.

It can also require:

• Specialized equipment
• Slower mowing speeds
• Additional trimming
• More operator attention
• Repeated trips to difficult sections of a property

The 535 AWD EPOS allows suitable steep turf to be maintained autonomously.

Rather than assigning an operator to repeatedly mow the same difficult slope, the robot can continuously maintain the grass while grounds personnel focus on:

• Trimming
• Edging
• Landscaping
• Irrigation
• Turf health
• Repairs
• Field preparation
• Equipment maintenance
• Other work requiring human judgment

That's where the ROI story for this mower becomes particularly compelling.

Why Buy the Husqvarna 535 AWD EPOS From Automation Hub?

Authorized Husqvarna Dealer + Commercial Automation Specialist

Automation Hub doesn't simply sell lawn equipment.

We specialize in autonomous equipment and commercial robotics.

A successful commercial robotic mowing deployment requires much more than choosing a mower based on acreage.

For the 535 AWD EPOS in particular, the property should be evaluated for:

• Slope
• Terrain
• Traction
• Actual mowable acreage
• Turf type
• Required cutting height
• Satellite visibility
• EPOS coverage
• Charging infrastructure
• Work areas
• Transport paths
• Operating schedules
• Fleet size
• Labor savings
• ROI

Automation Hub can assist with:

• Site evaluation
• Slope analysis
• Terrain assessment
• Mowable-acreage calculation
• Product selection
• Fleet sizing
• ROI analysis
• EPOS planning
• Reference-station selection and placement
• Charging-station planning
• Installation
• Virtual mapping
• Customized work areas
• Temporary stay-out zones
• Transport paths
• Mowing-pattern configuration
• Husqvarna Fleet Services setup
• Training
• Maintenance
• Replacement parts
• Diagnostics
• Repair
• Warranty support

Because Automation Hub works with multiple autonomous mowing technologies, we can evaluate the actual property rather than trying to make every site fit the same machine.

Professional Installation & Commercial Deployment

Automation Hub can assist with a complete 535 AWD EPOS deployment:

Site Evaluation → Slope Analysis → Terrain Review → Acreage Measurement → EPOS Design → Reference Station → Charging Infrastructure → Mapping → Work Areas → Transport Paths → Stay-Out Zones → Mowing Patterns → Fleet Services → Training

For larger or more complex properties, Automation Hub can also evaluate whether the best solution is:

• One 535 AWD EPOS
• Multiple 535 AWD EPOS units
• 550H EPOS
• 560 EPOS
• 580 EPOS
• 580L EPOS
• Husqvarna CEORA
• Another autonomous mowing platform
• A mixed autonomous fleet

The goal is to build the correct autonomous mowing system for the property.

Frequently Asked Questions

How much does the Husqvarna Automower 535 AWD EPOS cost?

$4,999.99.

Additional equipment such as the required EPOS positioning infrastructure for a wire-free installation may be sold separately.

How much area can the 535 AWD EPOS mow?

Husqvarna lists a nominal capacity of 1 acre ±20%, with professional capacity ratings of up to 0.75 acre in 24 hours or 1.5 acres in 48 hours.

How steep of a slope can it mow?

The 535 AWD EPOS can handle slopes up to 70% / approximately 35° inside the mowing area and up to 50% at the boundary.

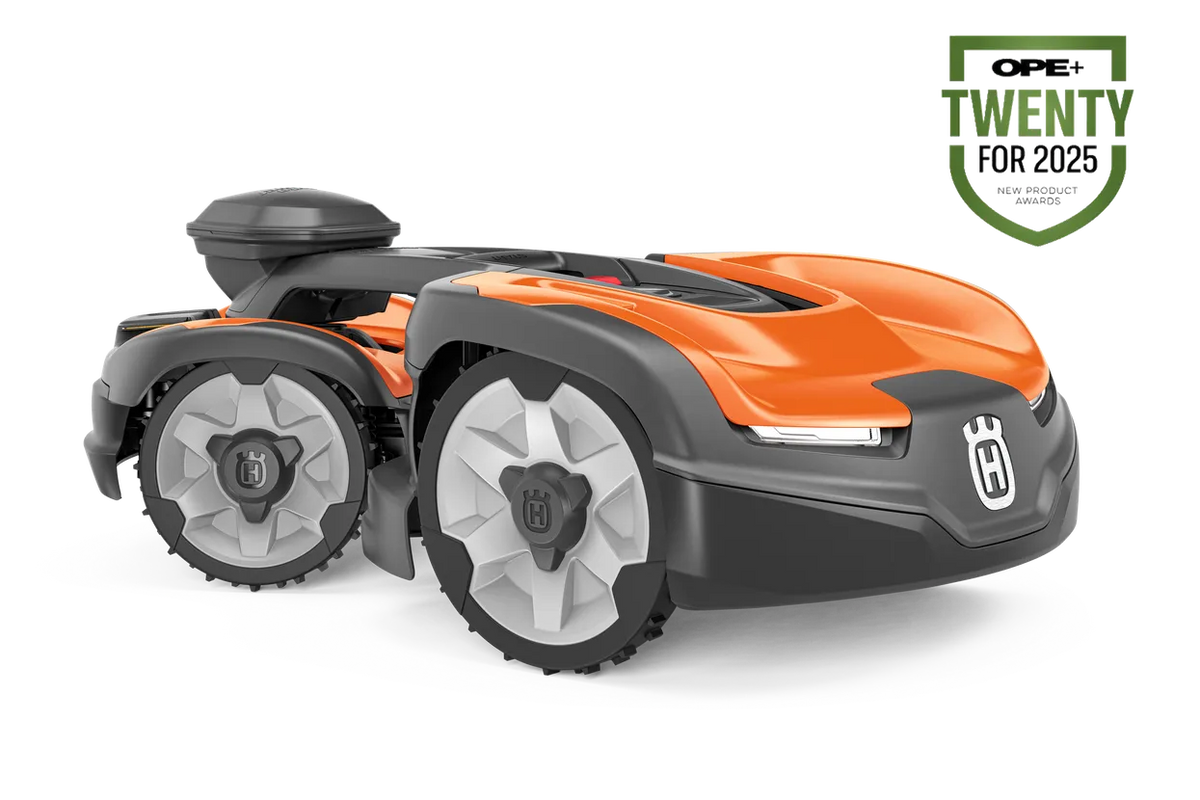

Is the 535 AWD EPOS really all-wheel drive?

Yes. Husqvarna's AWD system controls all four wheels and is designed specifically for demanding terrain.

Does it have an articulated chassis?

Yes. The rear body pivots relative to the front section, improving maneuverability and traction across rough and complex terrain.

Does it require perimeter wire?

Not when configured for EPOS virtual-boundary operation. Interestingly, Husqvarna lists the 535 AWD EPOS as compatible with both physical and virtual boundaries.

How accurate is Husqvarna EPOS?

Husqvarna states that its RTK-GNSS EPOS technology can provide positioning accuracy down to approximately 2 cm under suitable conditions.

Is an EPOS Reference Station included?

No. Husqvarna specifically lists the EPOS Reference Station among the items not included with the mower.

What is the cutting-height range?

Approximately 1.2–2.8 inches, with electric adjustment.

How wide does it cut?

Approximately 8.7 inches.

How many blades does it use?

The mower uses five pivoting razor blades.

How long does it mow per charge?

Husqvarna specifies approximately 145 minutes of typical mowing time.

How long does charging take?

Approximately 45 minutes under typical conditions.

Does it have obstacle detection?

Yes. The 535 AWD EPOS uses ultrasonic object detection.

Does the 535 AWD EPOS support Husqvarna AI Vision?

Husqvarna does not currently list the Vision Technology Accessory among the compatible accessories for the 535 AWD EPOS. Customers who require Husqvarna's optional AI-assisted object classification should evaluate the compatible 560 or 580 commercial platforms instead.

Can it mow stripes and patterns?

Yes. Husqvarna says EPOS allows professional operators to configure patterns such as parallel, checkerboard and diamond mowing patterns.

Can different areas have different settings?

Yes. Individual work areas can have their own schedule, cutting height and cutting pattern.

Can multiple 535 AWD EPOS mowers work on the same property?

Yes. Husqvarna states that multiple units can be managed through Fleet Services and coordinated using virtual work areas and schedules.

Can it operate in rain?

Yes. Husqvarna describes the mower as designed for 24/7 operation throughout the growing season with normal maintenance and cleaning, including cutting in rainy conditions.

Does it have GPS theft tracking?

Yes. GPS theft tracking, GeoFence, PIN protection and an alarm are included.

Does Automation Hub install the Husqvarna 535 AWD EPOS?

Yes. Automation Hub can assist with site evaluation, slope analysis, EPOS planning, reference-station placement, installation, mapping, Fleet Services setup, training, maintenance, diagnostics and support.

Husqvarna Automower 535 AWD EPOS From Automation Hub

At $4,999.99, the Husqvarna Automower 535 AWD EPOS fills one of the most specialized roles in Husqvarna's commercial robotic mower lineup:

Autonomous mowing on extreme terrain.

With true all-wheel drive, articulated steering, 70% slope capability, wire-free Husqvarna EPOS navigation, approximately 2 cm positioning accuracy, five pivoting cutting blades, 145-minute typical runtime, customizable work areas, systematic mowing patterns, virtual transport paths, ultrasonic obstacle detection and Husqvarna Fleet Services, the 535 AWD EPOS is engineered for properties where traction and terrain matter more than maximum acres per day.

For municipalities, parks, schools, universities, hospitals, resorts, corporate estates, golf properties and other professional landscapes with steep or rough terrain, it provides an autonomous alternative for repeatedly maintaining difficult slopes.

And when you purchase through Automation Hub, you're working with an authorized Husqvarna dealer and a commercial robotics company that can help evaluate and deploy the complete autonomous mowing system.

Contact Automation Hub for a site evaluation, slope analysis, demonstration, quote, ROI assessment or complete commercial autonomous mowing deployment.
